Start/Stop System Overview

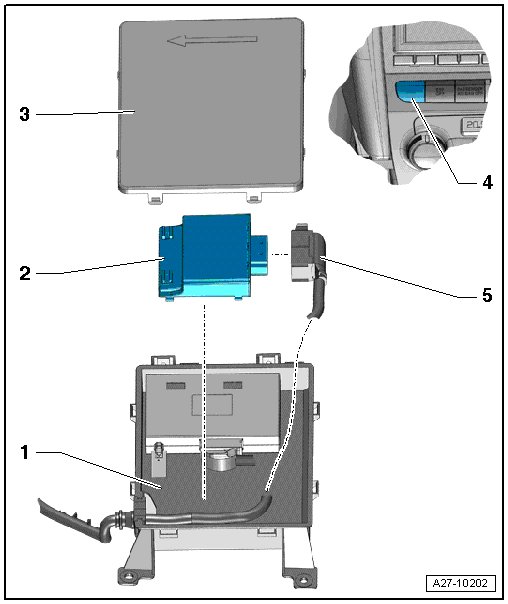

Start/Stop System Overview






1 Electronics Box

• For the voltage stabilizer

2 Voltage Stabilizer (J532)

• Removing and installing => [ Voltage Stabilizer ] Power and Ground Distribution

3 Cover

• For the electronics box

4 Start/Stop Mode Button (E693)

• Removing and installing => [ Start/Stop Mode Button ] Start/Stop Mode Button

5 Electrical Connector
