Cross-Member: Service and Repair

Tunnel Crossmember

Special tools, testers and auxiliary items required

• Engine-/Gearbox Jack (V.A.G 1383 A)

• Gearbox Support (T10337)

Removing

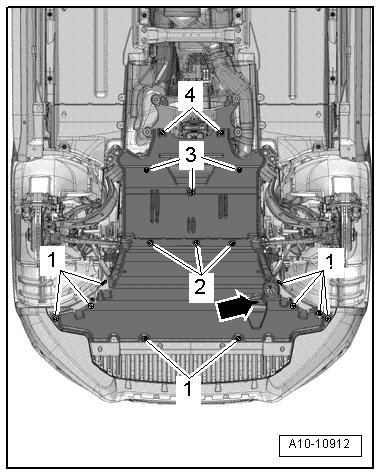

- Remove the rear noise insulation.

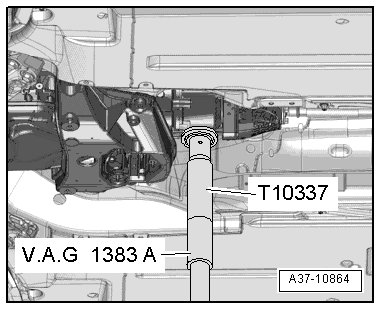

- Install the (T10337) on the (V.A.G 1383 A).






- Position the (T10337) on the bottom of the transmission.

- Lift the transmission slightly using the (V.A.G 1383 A).

There is the risk of an accident.

• The (V.A.G 1383 A) may only be used during assembly and must not sit unsupervised under the vehicle.

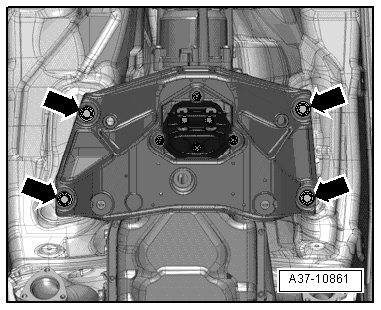

- Remove the bolts from the tunnel crossmember - arrows -.

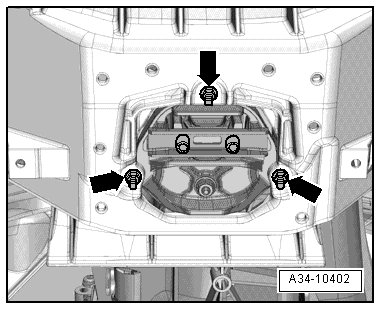

- Remove the nuts - arrow - and the tunnel crossmember.






Installing

Install in reverse order, paying attention to the following:

• Tightening specifications, refer to => [ Tunnel Crossmember, Transmission Mount and Transmission Support Overview ] Tunnel Crossmember, Transmission Mount and Transmission Support Overview.

- Install the rear noise insulation.
