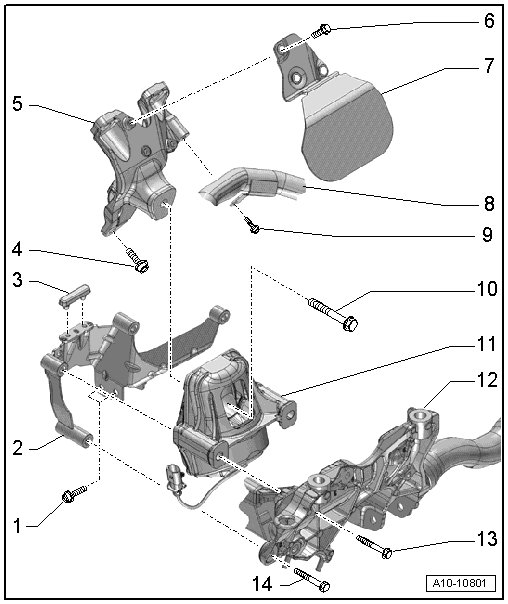

Subframe Mount Overview

Subframe Mount Overview






1 Bolt

• 20 Nm

2 Retaining Plate

• For the engine mount

• If the engine mount is faulty, replace the retaining plate

• Check the retaining plate on the opposite side; replace if necessary

3 Rubber Stop

• Not available individually

4 Bolt

• 40 Nm

5 Engine Support

6 Bolt

• 10 Nm

7 Heat Shield

8 Lower Left Coolant Pipe

9 Bolt

• Tightening specification => [ (Item 26) Bolt ]

10 Bolt

• Replace

• 90 Nm plus an additional 90° turn

11 Engine Mount

• With the electro-hydraulic engine mount solenoid valve

• Left electrohydraulic engine mount solenoid valve (N144) or right electro-hydraulic engine mount solenoid valve (N145)

• Removing and installing, refer to => [ Left Engine Mount ] Left Engine Mount, => [ Right Engine Mount ] Right Engine Mount

• Replace in pairs

12 Subframe

13 Bolt

• 55 Nm

14 Bolt

• 55 Nm
