Keyless Access Authorization Assembly Overview
Keyless Access Authorization Assembly Overview
2-door
1 Access/Start Authorization Button (E408)
• Component location inside the frame for the multimedia control head (E380)
• Removing and installing, refer to => [ Access/Start Authorization Button ] Access/Start Authorization Button
2 Passenger's Side Outside Door Handle
• With the right front outside door handle touch sensor (G606)
• Assembly overview, refer to => [ Exterior Door Handle, Keyless Access Authorization Assembly Overview ] Exterior Door Handle, Keyless Access Authorization Assembly Overview
3 Comfort System Central Control Module (J393)
• Component location behind the luggage compartment side trim panel on the right side
• Removing and installing, refer to => [ Comfort System Central Control Module ] Comfort System Central Control Module
4 Antenna Amplifier 3 (R112)
• with central locking and anti-theft alarm system antenna (R47)
5 Luggage Compartment Access/Start Authorization Antenna (R137)
• Component location on the luggage compartment rear lid end panel on the left side
• Removing and installing, refer to => [ Access/Start Authorization Antenna in Luggage Compartment, 2-Door ] Access/Start Authorization Antenna In Luggage Compartment, 2-Door
6 Driver's Side Outside Door Handle
• With the left front outside door handle touch sensor (G605)
• Assembly overview, refer to => [ Exterior Door Handle, Keyless Access Authorization Assembly Overview ] Exterior Door Handle, Keyless Access Authorization Assembly Overview
7 Left Access/Start Authorization Antenna (R200)
• Component location on the door trim panel
• Removing and installing, refer to => [ Left Access/Start Authorization Antenna, 2-Door ] Left Access/Start Authorization Antenna, 2-Door
8 Interior Access/Start Authorization Antenna 1 (R138)
• Component location under center console at the front
• Removing and installing, refer to => [ Interior Access/Start Authorization Antenna 1 ] Interior Access/Start Authorization Antenna 1
9 Electronic Steering Column Lock Control Module (J764)

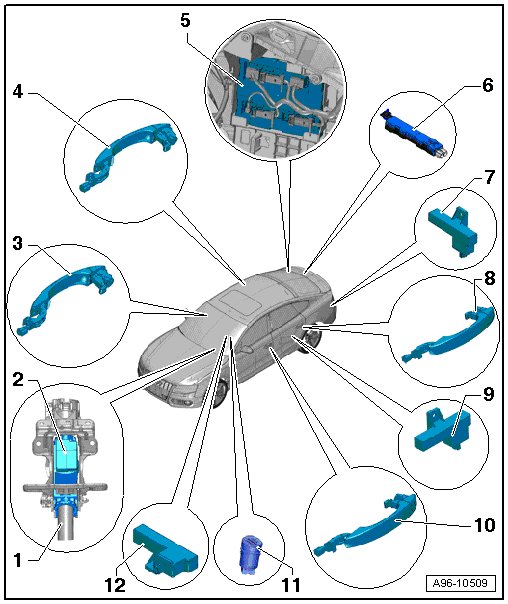

5-door
1 Steering Column
2 Electronic Steering Column Lock Control Module (J764)
3 Passenger's Side Outside Door Handle
• With the right front outside door handle touch sensor (G606)
• Assembly overview, refer to => [ Exterior Door Handle, Keyless Access Authorization Assembly Overview ] Exterior Door Handle, Keyless Access Authorization Assembly Overview
4 Rear Passenger Side Exterior Door Handle
• With the right rear outside door handle touch sensor (G418)
• Assembly overview, refer to => [ Exterior Door Handle, Keyless Access Authorization Assembly Overview ] Exterior Door Handle, Keyless Access Authorization Assembly Overview
5 Comfort System Central Control Module (J393)
• Component location behind the luggage compartment trim panel on the right side
• Removing and installing, refer to => [ Comfort System Central Control Module ] Comfort System Central Control Module
6 Antenna Amplifier 2 (R111)
• With Central Locking and Anti-Theft Alarm System Antenna (R47)
• Attached to the rear lid
7 Luggage Compartment Access/Start Authorization Antenna (R137)
• Component location on the luggage compartment rear lid end panel on the left side
• Removing and installing, refer to => [ Access/Start Authorization Antenna in Luggage Compartment, 5-Door ] Access/Start Authorization Antenna In Luggage Compartment, 5-Door
8 Rear Driver Side Exterior Door Handle
• With the left rear outside door handle touch sensor (G417)
• Assembly overview, refer to => [ Exterior Door Handle, Keyless Access Authorization Assembly Overview ] Exterior Door Handle, Keyless Access Authorization Assembly Overview
9 Left Access/Start Authorization Antenna (R200)
• Component location on the door
• Removing and installing, refer to => [ Left Access/Start Authorization Antenna, 5-Door ] Left Access/Start Authorization Antenna, 5-Door
10 Driver's Side Outside Door Handle
• With the left front outside door handle touch sensor (G605)
• Assembly overview, refer to => [ Exterior Door Handle, Keyless Access Authorization Assembly Overview ] Exterior Door Handle, Keyless Access Authorization Assembly Overview
11 Access/Start Authorization Button (E408)
• MMI Basic installation location inside the center console cover
• MMI Comfort installation location inside the frame for the multimedia control head (E380)
• Removing and installing, refer to => [ Access/Start Authorization Button ] Access/Start Authorization Button
12 Interior Access/Start Authorization Antenna 1 (R138)
• Component location under center console at the front
• Removing and installing, refer to => [ Interior Access/Start Authorization Antenna 1 ] Interior Access/Start Authorization Antenna 1

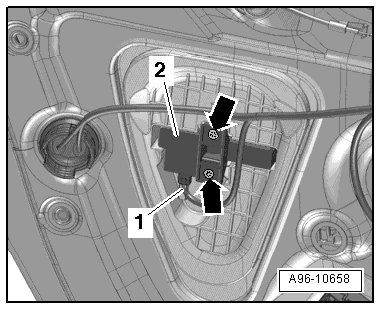

Interior access/start authorization antenna 1 tightening specifications
1. Interior access/start authorization antenna 1
2. Mount
3. Electrical connector
4. Bolt - 2 Nm
Tightening specification left access/start authorization antenna - 2-door
- Tighten the bolts - arrows - on the left access/start authorization antenna to 2 Nm.
Tightening specification left access/start authorization antenna - 5-door
- Tighten the bolts - arrows - on the left access/start authorization antenna to 2 Nm.
Luggage compartment access/start authorization antenna tightening specifications
- Tighten the nuts - arrows - on the luggage compartment access/start authorization antenna to 2 Nm.
