Seat Backrest and Headrest Adjustment Control Head Overview
Seat Backrest and Headrest Adjustment Control Head Overview

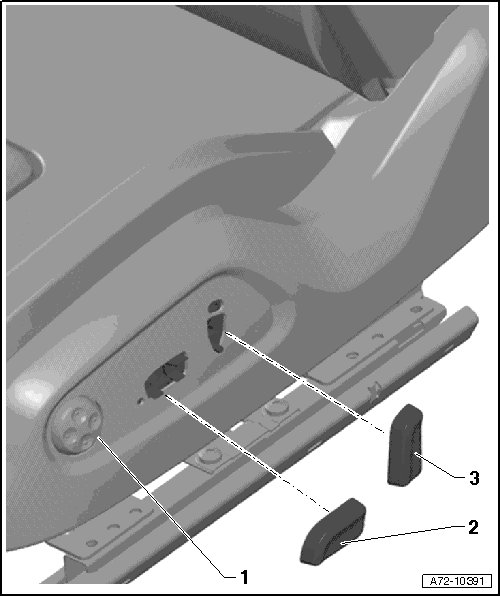

1 Lumbar Support Adjustment Switch
• Driver side: driver seat lumbar support adjustment switch (E176)
• Front passenger side: front passenger seat lumbar support adjustment switch (E177)
• Do not disconnect actuator and switch, they can only be replaced as a complete assembly unit.
• Removing and installing, refer to => [ Lumbar Support Adjustment Switch ] Lumbar Support Adjustment Switch
2 Control for Seat Forward/Back, Tilt, and Height Adjustment
• Driver side: for driver seat forward/back adjustment switch (E363) , driver seat angle adjustment switch (E222) , driver seat height adjustment switch (E364)
• Front passenger side: for front passenger seat forward/back adjustment switch (E64) , front passenger seat angle adjustment button (E334) , front passenger seat height adjustment switch (E365)
• Actuator, removing and installing => [ Seat Adjustment Control Head ] Seat Adjustment Control Head
• Switch and button, removing and installing => [ Seat Adjustment Control Head ] Seat Adjustment Control Head
• The switch and button including the switches and buttons listed under=> [ (Item 3) Backrest and Headrest Adjustment ] are integrated in the driver seat adjustment control head (E470) or front passenger seat adjustment control head (E471) and cannot be replaced separately.
3 Backrest and Headrest Adjustment
• Driver side: for driver backrest adjustment switch (E96) , driver headrest adjustment button (E155)
• Front passenger side: for front passenger backrest adjustment switch (E98) , front passenger headrest adjustment switch (E170)
• Actuator, removing and installing => [ Backrest and Headrest Adjustment Actuator ] Backrest and Headrest Adjustment Actuator
• Switch and button, removing and installing => [ Seat Adjustment Control Head ] Seat Adjustment Control Head
• The switch and button including the switches listed under - 2 - => [ (Item 2) Control for Seat Forward/Back, Tilt, and Height Adjustment ] are integrated in the driver seat adjustment control head (E470) or front passenger seat adjustment control head (E471) and cannot be replaced separately.
