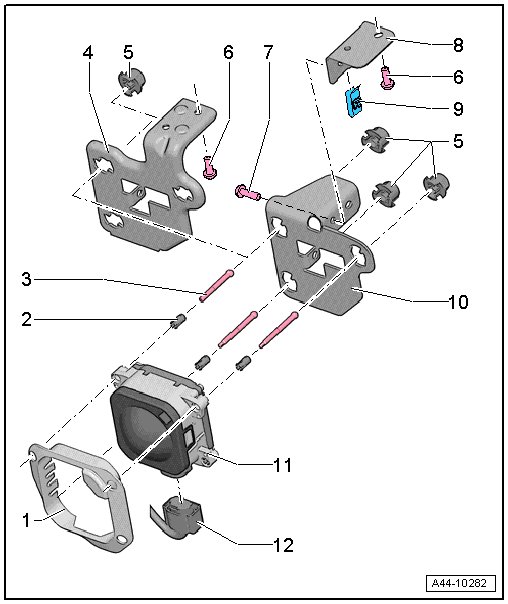

Adaptive Cruise Control Sensor (G550) Overview

Adaptive Cruise Control Sensor (G550) Overview






1 Cover

2 Clip

• Installed on vehicles from MY 12.

• Always replace the clip if the stud bolt - 3 - was removed.

• Removing and installing, refer to => [ Distance Regulation Control Module Clip, From MY 12 ] Distance Regulation Control Module Clip, From MY 12.

3 Stud

• Always replace the clip - 2 - if the stud bolt was removed.

• Observe adjustment dimension when installing. Refer to => [ Measure dimension of all studs. ] Removal and Replacement

4 Bracket

• For vehicles through MY 12.

5 Nut

6 Bolt

• 8 Nm

7 Bolt

• 8 Nm

8 Angle

• Installed on vehicles from MY 12.

9 Speed Nut

10 Bracket

• For vehicles from MY 12.

• If a repair is being performed, then replace the bracket with the newer style bracket - 4 -. Allocation Electronic Parts Catalog (ETKA).

11 Adaptive Cruise Control Sensor (G550)

• Different versions, for allocation refer to the Electronic Parts Catalog (ETKA).

• Removing and installing, refer to => [ Adaptive Cruise Control Sensor (G550) ] Removal and Replacement.

12 Connector

• Squeeze both clips to disconnect.
