ACC Setting Device (VAS 6190), Converting for Adjustment Procedure

Special tools, testers and auxiliary items required

• ACC Adjustment Device (VAS 6190)

• Before performing adjustment, check in which mount the vertical slits on the (VAS 6190) are located. (VAS 6190) may have to be adapted before performing adjustment.

• The (VAS 6190) must be adapted before adjustment procedure. If this is done during the adjustment procedure, the pre-calibration on the (VAS 6190) must be repeated.

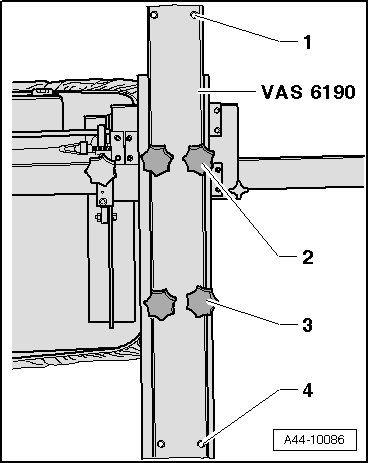

- For the adjustment procedure, the vertical slits in mounts - 1 - through - 4 - must be inserted so that laser beam is approximately centered vertically when it contacts the sensor lens.

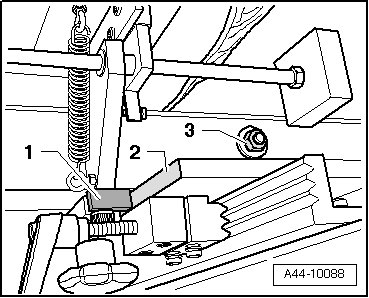

- The original nut at the top of the horizontal slits must be replaced with a standard nut - 3 -.






• The original nut at the top of the horizontal slits must be replaced with a standard nut so that the mirror can be slide far enough to the center.

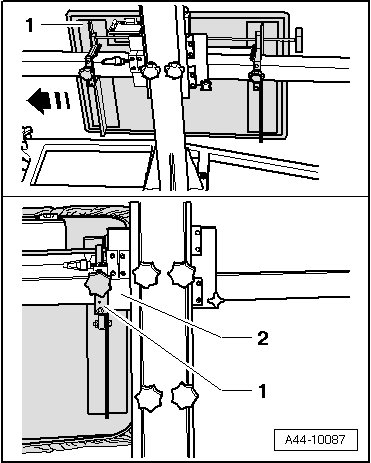

- The mirror at the center - 1 - must be removed and re-installed all the way to the left - arrow - near the vertical slits - 2 -.






- Then the mirror - 1 - must be slide on horizontal slits as far as stop on vertical slits - 2 -.
