Sedan

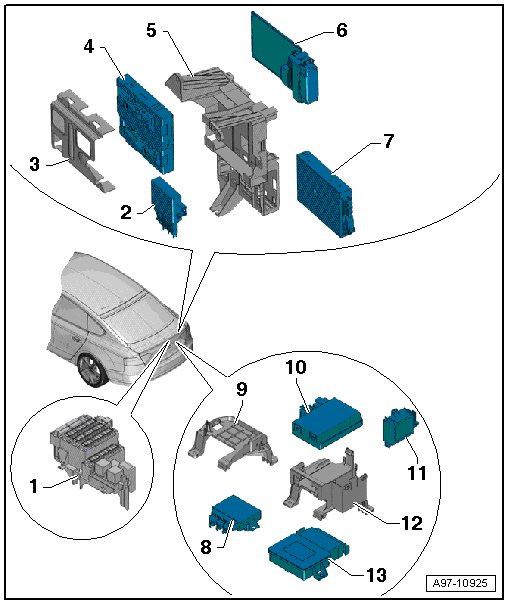

Luggage Compartment Relay and Fuse Carrier and Control Modules Assembly Overview






1 Fuse Panel F (SF)

• Removing and installing, refer to => [ Fuse Panel F in Right Luggage Compartment ] Fuse Panel F In Right Luggage Compartment

• Tightening specification

2 Vehicle Positioning System Interface Control Module (J843)

3 Cover

• For the comfort system central control module

4 Comfort System Central Control Module (J393)

• Removing and installing, refer to => [ Comfort System Central Control Module ] Comfort System Central Control Module

5 Retaining Frame

• For The control modules

6 Electronic Damping Control Module (J250)

7 Rear View Camera System Control Module (J772)

8 Parking Aid Control Module (J446)

• Assembly overview, refer to => [ Parking Aid Assembly Overview ] Parking Aid Assembly Overview

9 Retaining Frame

• For the control modules

• For Vehicles without a trailer hitch

• Only for vehicles without an auxiliary heater

10 Towing Recognition Control Module (J345)

• Assembly overview, refer to => [ Trailer Hitch Outlet and Towing Recognition Control Module Assembly Overview ] Trailer Hitch Outlet and Towing Recognition Control Module Assembly Overview

11 Auxiliary Heater Radio Receiver (R64)

12 Retaining Frame

• For The control modules

• For Vehicles with a trailer hitch

• For vehicles with an auxiliary heater

13 Electromechanical Parking Brake Control Module (J540)

Fuse panel F tightening specifications





1 Fuse panel F
2 Fuse panel
4 Nut - 3 Nm
5 Relay/control module

Control module frame tightening specification





- Tighten the nuts - arrows - to 3 Nm.
