Generator With Bushings Assembly Overview

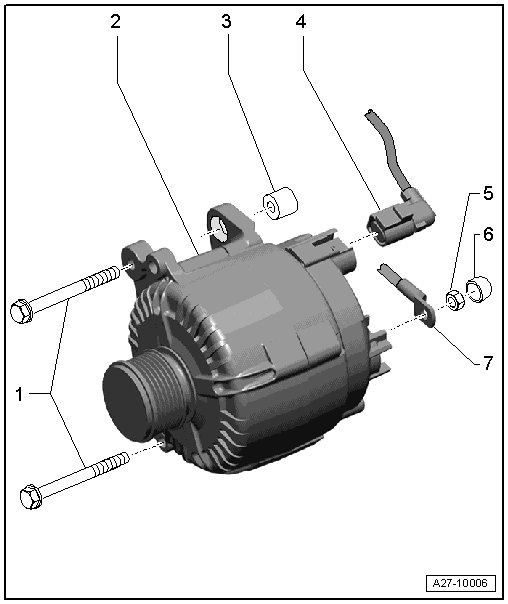

Generator with Bushings Assembly Overview






1 Bolts

• 23 Nm

2 Generator

• Removing and installing

• 4.2L FSI, refer to => [ Generator ] Generator

3 Bushing

• Because the clamping force of a tight socket is too low despite the correct torque, loosen sockets

4 Electrical Connector

5 Nut

• 16 Nm

6 Cap

7 Terminal 30/B+
