Steering Column Switch Module and Electronic Ignition Lock Assembly Overview

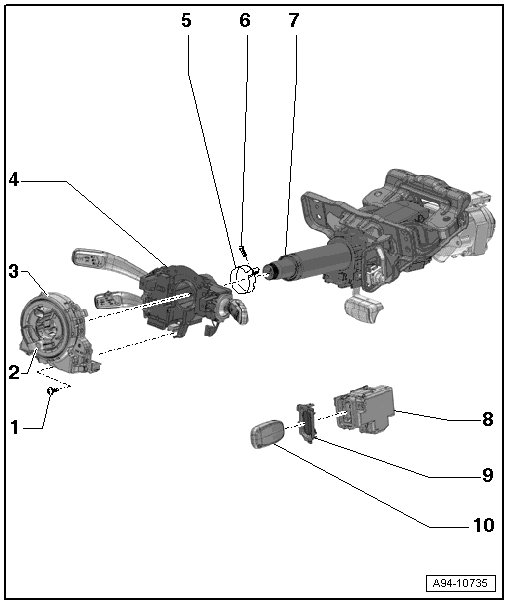

Steering Column Switch Module and Electronic Ignition Lock Assembly Overview






1 Screw

• 0.5 Nm

2 Transport Protection

3 Steering Column Electronic Systems Control Module (J527)


Risk of damaging coil connector.

• Coil connector with slip ring is not to be turned following removal.

• With airbag spiral spring/return spring with slip ring (F138), steering angle sensor (G85)

• Removing and installing, refer to => [ Steering Column Electronic Systems Control Module ] Steering Column Electronic Systems Control Module

• Connector assignment of Steering Column Electronic Systems Control Module (J527). Refer to => [ Steering Column Electronic Systems Control Module Connector Assignment ] [1][2]Diagrams

4 Mount

• With turn signal switch (E2), windshield wiper/washer switch (E22)

• On vehicles with cruise control with cruise control switch (E45)

• Removing and installing, refer to => [ Turn Signal Switch, Cruise Control Switch and Windshield Wiper and Washer Intermittent Switch ] Service and Repair

5 Clamping Ring

6 Screw

• 4 Nm

7 Steering Column

8 Access/Start Authorization Switch (E415)

• Removing and installing, refer to => [ Access/Start Authorization Switch ] Access/Start Authorization Switch

9 Divider

• For access/start authorization switch

• Removing and installing, refer to => [ Access/Start Authorization Switch ] Access/Start Authorization Switch

10 Ignition Key

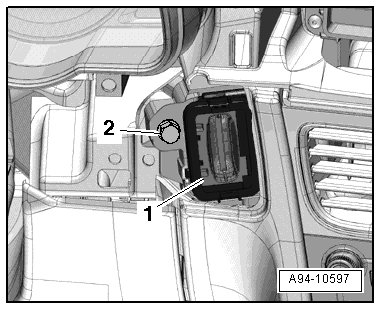

Access/start authorization switch tightening specification





- Tighten the bolt - 2 - on the access/start authorization switch - item 1 - to 3 Nm.
