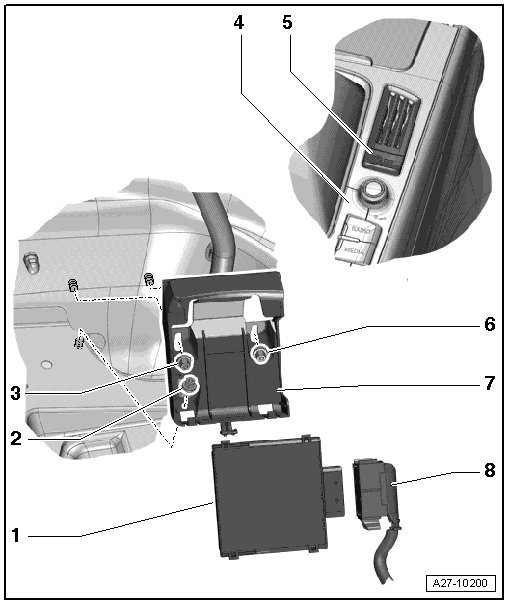

Start/Stop System Assembly Overview

Start/Stop System Assembly Overview






1 Voltage Stabilizer (J532)

2 Nut

• 3 Nm

3 Nut

• 3 Nm

4 Cover/Multimedia Control Head (E380)

5 Start/Stop Mode Button (E693)

• Removing and installing, refer to => [ Start/Stop Mode Button ] Start/Stop Mode Button

6 Nut

• 3 Nm

7 Bracket

• For the voltage stabilizer (J532)

8 Electrical Connector
