Subframe Mount Assembly Overview

Subframe Mount Assembly Overview

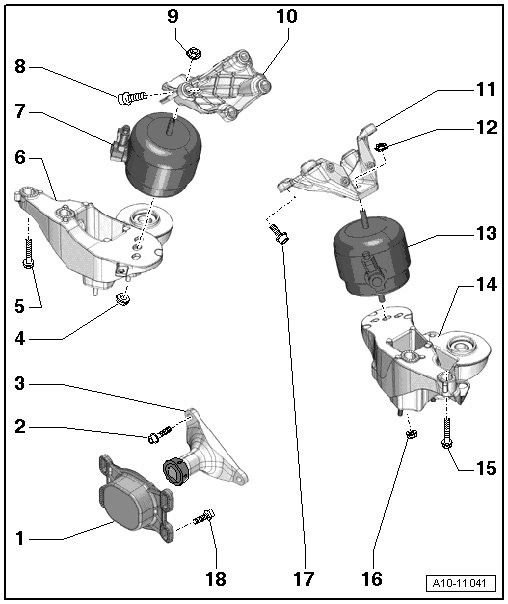

1 Torque support stop

• Must contact torque support buffer at top and bottom without play

2 Bolt

• 40 Nm

3 Torque bracket

• Removing and installing => [ Torque Support ]

4 Nut

• 40 Nm

5 Bolt

• 75 Nm

6 Right engine mount console

• Removing and installing => [ Right Engine Mount ] Right Engine Mount

7 Engine mount, right

• Removing and installing => [ Right Engine Mount ] Right Engine Mount

8 Bolt

• 40 Nm

9 Nut

• 40 Nm

10 Right engine support

• Removing and installing => [ Right Engine Mount ] Right Engine Mount

11 Left engine support

• Removing and installing => [ Left Engine Mount ] Left Engine Mount

12 Nut

• 40 Nm

13 Engine mount, left

• Removing and installing => [ Left Engine Mount ] Left Engine Mount

14 Left engine mount bracket

• Removing and installing => [ Left Engine Mount ] Left Engine Mount

15 Bolt

• 75 Nm

16 Nut

• 40 Nm

17 Bolt

• 40 Nm

18 Bolt

• 40 Nm
