Keyless Access Authorization System Overview - Outside Door Handle
Access/Start Authorization System

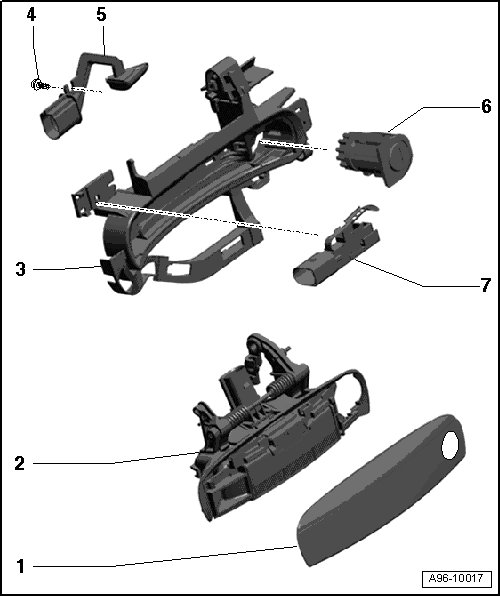

Keyless Access Authorization System Overview - Outside Door Handle
2 - Outside Door Handle Touch Sensor
• Driver Outside Door Handle Touch Sensor -G415-
• Front Passenger Outside Door Handle Touch Sensor -G416-
• Right Rear Outside Door Handle Touch Sensor -G418-
• Left Rear Outside Door Handle Touch Sensor -G417-
5 - Outside Door Handle Central Locking Button
• Driver Outside Door Handle Central Locking Button -E369-
• Front Passenger Outside Door Handle Central Locking Button -E370-
• Right Rear Outside Door Handle Central Locking Button -E372-
• Left Rear Outside Door Handle Central Locking Button -E371-
7 - Outside Door Handle Switch
• Driver Door Handle Switch -F272-
• Passenger Door Handle Switch -F273-
• Left Rear Door Handle Switch -F274-
• Right Rear Door Handle Switch -F275-
