Trunk / Liftgate Lock: Service and Repair

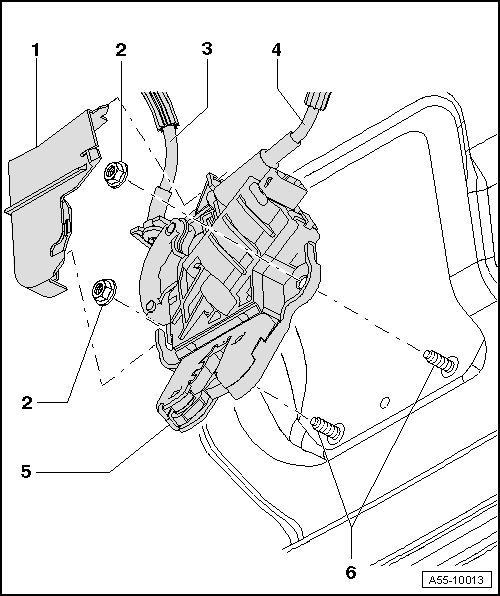

Rear Lid Lock





1 Cover for lid lock

2 Combination nut

• 8 Nm

3 Lid lock release

• Disengaged at lid lock

4 Emergency unlock release

• Not installed on all vehicles

5 Rear lid lock

- Unclip cover - 1 -from lid lock.

- Remove combination screws - 2 -.
