Storage Compartment, Disassembling

Storage Compartment, Disassembling

• The seat must not be removed to disassemble and assemble storage compartment.

• The storage compartment can be assembled and disassembled when installed.

• To replace outer part => [ (Item 7) Outer Part ] Storage Compartment Individual Components Assembly Overview, front seat and storage compartment must be removed.

Trim, Removing

- Remove inner part from outer part.

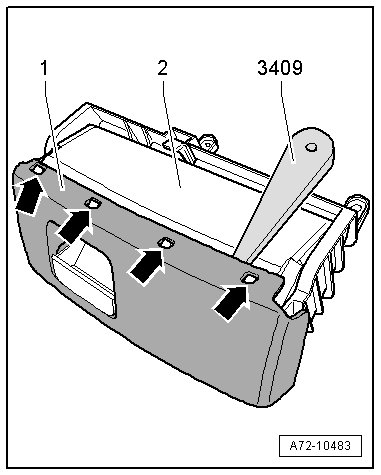

- Using Trim Removal Wedge (3409), unclip trim - 1 - from retaining tabs - arrows - (quantity: 4) on inner part - 2 -.





Handle with locking mechanism, removing

- Remove trim.

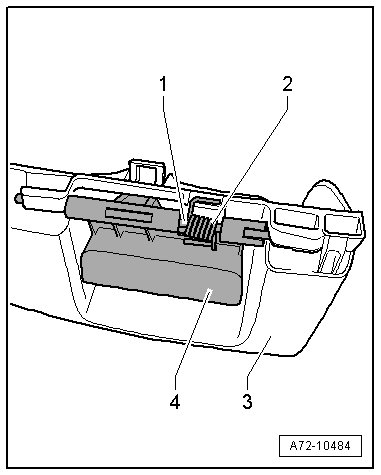

- Remove axle - 1 - from inner part - 3 -.





- Remove handle with locking mechanism - 4 -, torsion spring - 2 - and axle - 1 -.

Insert, removing

• The insert is placed in the inner part and is not secured by any additional means.

• For overview purposes, the storage compartment is shown removed and without trim and release handle in the following illustrations.

- Open storage compartment.

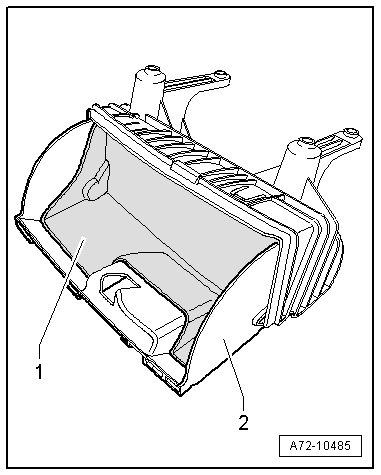

- Remove insert - 1 - from inner part - 2 -.





Inner part, removing from outer part

- Open storage compartment.

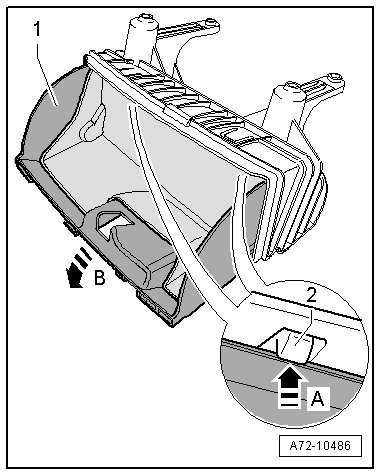

- Press retainers - 2 - (quantity: 2) upward in - direction of arrow A -.





- Tip inner part - 1 - down in - direction of arrow B -.

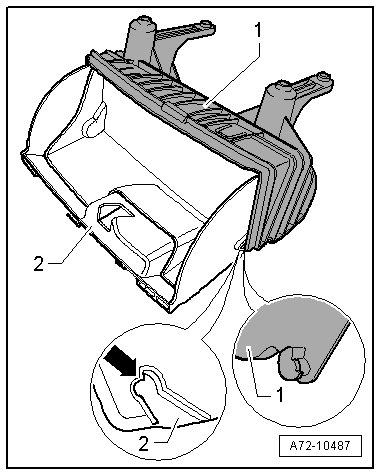

- Remove outer part - 1 - from guide - arrow - on inner part - 2 -.





Storage compartment, assembling

Assembly is performed in the reverse order of removal. Observe the following when doing so:

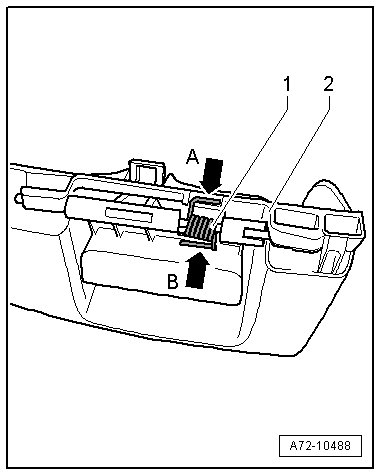

- Engage torsion spring - 1 - so that shorter side - arrow A - is supported on inner part - 2 - and longer side - arrow B - is supported on handle - 3 -.
