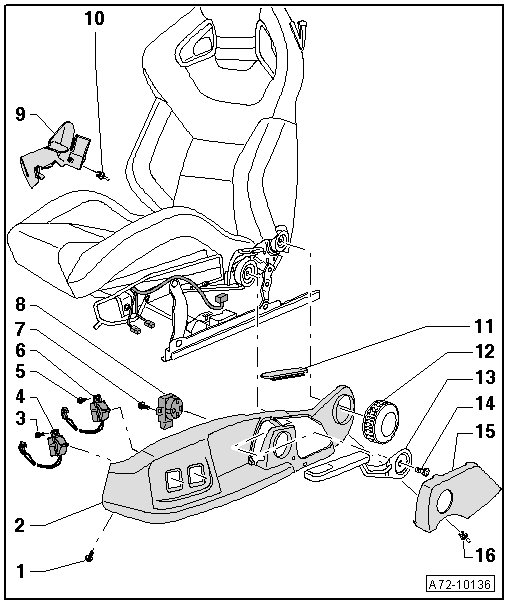

Side Trim Assembly Overview

Side Trim Assembly Overview





1 Bolt

• 1.2 Nm

2 Sill Side Trim

• Removing and installing, refer to => [ Sill Side Trim ] Sill Side Trim

3 Bolt

• 0.4 Nm

4 Button for Seat Bolster Inflation Adjustment

• Driver Seat Bolster Inflation Adjustment Button (E587)

• Front Passenger Seat Bolster Inflation Adjustment Button (E588)

• Removing and installing, refer to => [ Backrest Bolster and Seat Bolster Adjustment Button ] Backrest Bolster and Seat Bolster Adjustment Button

5 Bolt

• 0.4 Nm

6 Button for Backrest Bolster Inflation Adjustment

• Driver Backrest Bolster Inflation Adjustment Button (E589)

• Front Passenger Backrest Bolster Inflation Adjustment Button (E590)

• Removing and installing, refer to => [ Backrest Bolster and Seat Bolster Adjustment Button ] Backrest Bolster and Seat Bolster Adjustment Button

7 Bolt

• 0.4 Nm

8 Lumbar Support Adjustment Switch

• Driver Seat Lumbar Support Adjustment Switch (E176)

• Front Passenger Seat Lumbar Support Adjustment Switch (E177)

• Removing and installing, refer to => [ Backrest Bolster and Seat Bolster Adjustment Button ] Backrest Bolster and Seat Bolster Adjustment Button

9 Tunnel Side Trim

• Removing and installing, refer to => [ Tunnel Side Trim ] Tunnel Side Trim

10 Spreader Clip

11 Not Installed

12 Hand Wheel for Backrest Adjustment

• Removing and installing, refer to => [ Backrest Adjustment Hand Wheel ] Backrest Adjustment Hand Wheel

13 Handle for Seat Height Adjustment

• Removing and installing, refer to => [ Seat Height Adjustment Handle ] Seat Height Adjustment Handle

14 Bolt

• Tightening specification => [ (Item 1) Bolt ] Seat Height Adjustment Unit Assembly Overview

15 Side Panel on Outside

• Removing and installing, refer to => [ Side Trim ] Side Trim

16 Spreader Clip
