Brake Fluid Level Sensor/Switch: Service and Repair

Brake Pressure Sensors

Removing

- Raise vehicle.

• The brake pressure sensor is attached to the brake pipe distributor. The brake pipe distributors are located in the engine compartment on the right and left sides.

• The brake pressure sensors can be interchanged.

• The old 1J0. brake pressure sensors cannot be bled.

• Replace the old sensors with new ones so that it is possible to bleed the brake system completely.

• The new brake pressure sensors have a part number that starts with 4F0.

- Remove wheels.

- Remove nut - 1 - and fold cover away to the side.





- Unclip wiring harness.

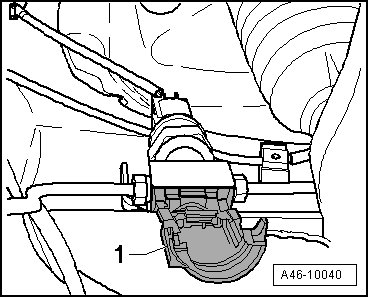

- Open the plastic housing cover.

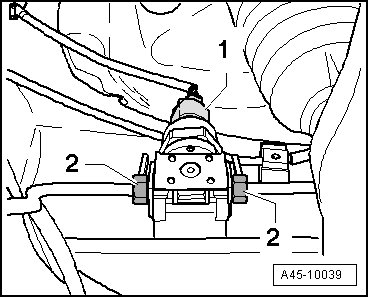

- Disconnect the brake pressure sensor connector - 1 -.

- Remove the brake pressure sensor from the distributor.

• The brake line - 2 - must be loosened in order to remove the brake pipe distributor.





Installing

- Installation is performed in the reverse order of removal.

- Tightening specification: 28 Nm

The brake line - 2 - must be loosened in order to remove the brake pipe distributor.

- Attach the brake line - 2 - after installing the brake pipe distributor. Tightening specification: 12 Nm.

- Bleed brake system. Refer to => [ Bleeding Brake System ] Procedures.
