Axle Alignment Control Position, with Air Spring Suspension, Checking

Axle Alignment Control Position, with Air Spring Suspension, Checking

Special tools, testers and auxiliary items required

• Vehicle Diagnosis, Testing and Information System (VAS 5051 B)

Checking

- Connect (VAS 5051 B) and then perform vehicle-specific entry into Guided Fault Finding and select Go To button "function/component selection". Refer to => [ VAS 5051 Connecting and Selection Functions ] Scan Tool Testing and Procedures.

Then

- "Chassis"

- "34 - Level control".

- "44 - Wheels, tires, vehicle alignment".

- "KD44 85 - Axle alignment".

• Activate vehicle lift mode only after checking or reprogramming height dimensions.

- Activate vehicle lift mode. Refer to => [ Vehicle Lift Mode ] Vehicle Lift Mode.

1BK Suspension

- Front height dimension: 386 mm

- Rear height dimension: 384 mm

Suspension 1BY

- Front height dimension: 388 mm

- Rear height dimension: 380 mm

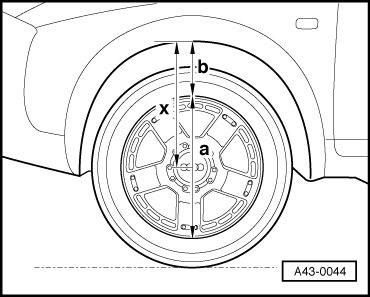

Determining the Height Dimension - x -

Height dimension - x - is the measurement in mm between center of wheel and lower edge of fender.

- Measure rim diameter.






The measured value gives dimension: - a -.

- Measure from upper rim edge vertically to lower fender edge.

The measured value gives dimension: - b -.

Height dimension x is derived from:

x = a : 2 + b.
