Secondary Air Injection Pump Relay, Checking







Secondary Air Injection Pump Relay, Checking

Observe all safety precautions: => [ Safety Precautions ] Generic Scan Tool

View clean working conditions: => [ Clean Working Conditions ] Clean Working Conditions

Use only gold-plated terminals when servicing any component with gold-plated electrical harness connector terminals.

For wiring diagrams, component locations, and connector views, Refer to the applicable wiring diagram.

Special tools, testers and auxiliary items required

• multimeter.

• Wiring diagram.

Test requirements

• Secondary Air Injection (AIR) Pump Relay (-J299-)fuses OK.

• Motronic Engine Control Module (ECM) Power Supply Relay (J271) fuse OK.

• Battery voltage at least 12.5 V.

• All electrical consumers switched off.

• A/C switched off.

• The ignition switched off.

Test procedure

- Perform a preliminary check to verify the customers complaint. Refer to => [ Preliminary Check ] Preliminary Check.

Start diagnosis

- Remove the Secondary Air Injection (AIR) Pump Relay (J299). Refer to the appropriate service information.

Checking voltage

- Using a Multimeter, check the Secondary Air Injection (AIR) Pump Relay (J299) socket 2/30 to Ground (GND).

Specified value: battery voltage.

If the specified value was not obtained:

- Check the wiring connection from the Secondary Air Injection (AIR) Pump Relay (J299) socket 2/30 to the Battery (A) (+) terminal for an open circuit or a short circuit to Ground (GND).

- Check the wiring connections for damage, corrosion, loose or broken terminals.

- If necessary, repair the faulty wiring connection.

If the specified value was obtained:

- Switch the ignition on.

- Using a multimeter, check the Secondary Air Injection (AIR) Pump Relay (J299) socket 8/87 to Ground (GND) for voltage.

Specified value: battery voltage.

- Switch the ignition off.

If the specified value was not obtained:

- Check the wiring connection from the Secondary Air Injection (AIR) Pump Relay (J299) socket 8/87 to the Secondary Air Injection (AIR) Pump Motor (V101) socket 2 for an open circuit.

- Check the wiring connections for damage, corrosion, loose or broken terminals.

- If necessary, repair the faulty wiring connection.

If the specified value was obtained:

Checking wiring

If the manufacturers test box is being used, perform the following step.

- Install the test box.

If the manufacturers test box is not being used, perform the following step.

- Remove the Engine Control Module (ECM) (J623). Refer to the appropriate service information.

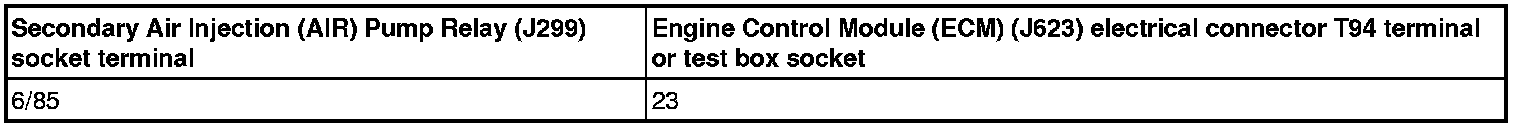

- Using a multimeter, check the Secondary Air Injection (AIR) Pump Relay (J299) socket 6/85 to the Engine Control Module (ECM) (J623) electrical harness connector T94 terminal 23 for resistance.





Specified value: 1.5 ohms Max.

If the specification was not obtained:

- Check the wiring for a short circuit to Battery (+), or an open circuit.

- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

- If necessary, repair the faulty wiring connection.

If no malfunction is found in the wiring and voltage supply was OK:

- Replace the Secondary Air Injection (AIR) Pump Relay (J299). Refer to the appropriate service information.

- Erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Modes 01 - 09.

- Perform a road test to verify repair.

If the DTC does not return:

Generate readiness code. Refer to => [ Readiness Code ] Monitors, Trips, Drive Cycles and Readiness Codes.

If the DTC returns and no malfunction is found in the wiring and the voltage supply was OK:

- Replace the Engine Control Module (ECM) (J623). Refer to the appropriate service information.

Final procedures

After repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Modes 01 - 09.

2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Modes 01 - 09.

3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code ] Monitors, Trips, Drive Cycles and Readiness Codes.
