Transmission Transporting

Transmission Transporting

Special tools, testers and auxiliary items required

• Attachment and holding rig (3457)

• Workshop crane (VAS 6100)

Procedure

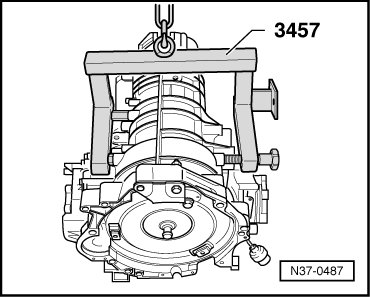

The attachment and holding rig (3457) can be used when transporting the transmission and for aligning the transmission support.

- Attach the attachment and holding rig (3457) to the mounts on the transmission housing and secure.

- The transmission can be lifted and transported using the workshop crane (VAS 6100).
