Shift Interlock Control Module: Service and Repair

Selector Lever Sensor System Control Module with Tiptronic Switch

• The selector lever sensor system control module (J587) with Tiptronic switch (F189) are combined in one component.

• The Tiptronic switch (F189) magnets are secured to the cover.

Removing

- Remove the selector lever handle. Refer to => [ Selector Lever Handle ] Selector Lever Handle.

- Remove the front and rear center consoles.

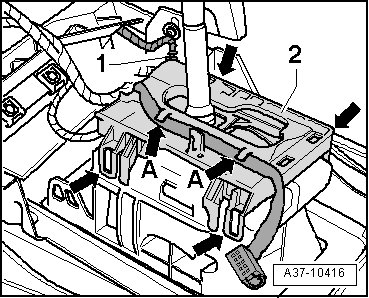

- Disconnect the electrical connector - 1 -.





- Release the four retaining tabs - arrows - and remove the selector lever sensor system control module (J587) with Tiptronic switch (F189) upward.

Installing

Install in the reverse order, paying attention to the following:

- Engage the selector lever sensor system control module (J587) with Tiptronic switch (F189) with the four retaining tabs - arrows -.

- Secure the selector lever Transmission Range (TR) position display (Y26) electrical wiring - arrows -.

- Install the front and rear center consoles.

- Install the selector lever handle. Refer to => [ Selector Lever Handle ] Selector Lever Handle.
