Cover Profile, Replacing

Cover Profile, Replacing

Cover profile can only be replaced when windshield is removed.

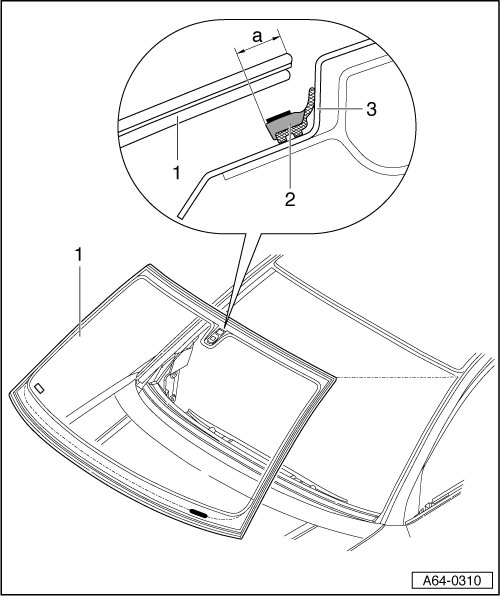

1 - Windshield

• Removal, refer to => [ Windshield, Removing and Installing ] Windshield, Removing and Installing

2 - Cover profile

• Adhering, refer to => [ Cover Profile, Adhering ] Cover Profile, Adhering.

• Before installing new cover profile, remove residue completely using a commercially available window scraper to avoid damaging ceramic screen printed area.

• Clean adhesion area with cleaning solution D 009 401 04.

• Apply on to interior of window using, for example, a soft pencil at a distance - a - = 8 mm from upper window edge.

• Prime adhesion surface with D 009 200 02 up to marking applied earlier and let it air dry for at least 10 minutes.

• Press cover profile onto window centered with rear edge to end of priming (pencil marking).

• Press on cover profile firmly using an application roller.

• Reinstall window.
