Fluid - ASMT

Capacities

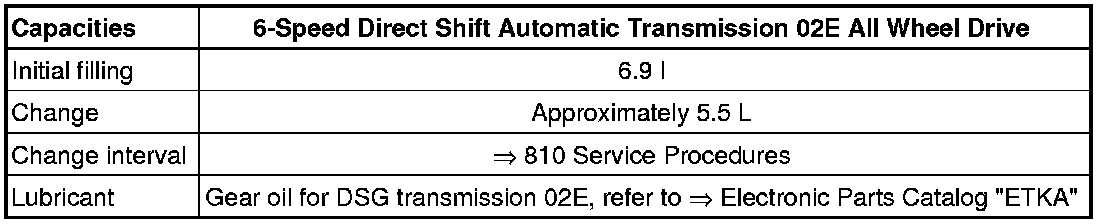

Transmission Capacity





• Only the gear oil available as a replacement part may be used for the 02E direct shift automatic transmission. Other oils can cause malfunctions or transmission failure.

• If the gear oil is replaced, transmission oil filter must also be replaced.

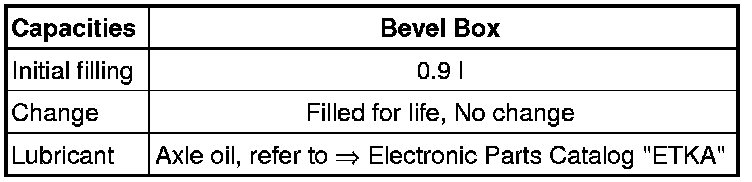

Bevel Box Capacity





• Only the axle oil available as a replacement part may be used with the bevel box. Other oils can cause malfunctions or bevel box failure.

- Axle oil level, check and top off.

- Axle oil, fill after repairs.
