Spring Mat Component Overview

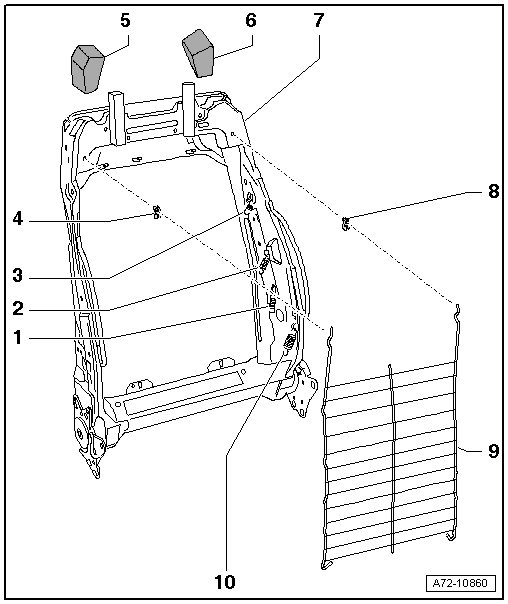

Spring Mat Component Overview






1 Lower Center Pull-spring

• Different number of coils

2 Upper Center Pull-spring

• Different number of coils

3 Upper Pull-spring

• Different number of coils

4 Right Clip

• For the spring mat

5 Right Spacer

6 Left Spacer

7 Backrest Frame

8 Left Clip

• For the spring mat

9 Spring Mat

• Removing and Installing, refer to => [ Spring Mat ] Spring Mat

• Can be removed and installed with and without the pull-springs

10 Lower Pull-spring

• Different number of coils
