A/C Unit Components - Automatically Regulated A/C System

Component Locations: Climate / Climatronic Systems

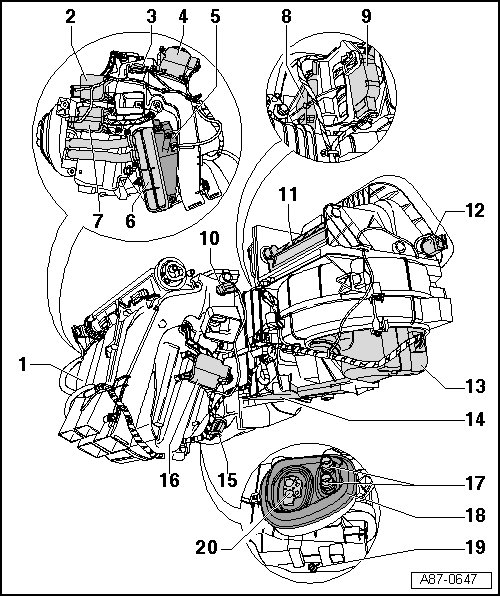

A/C Unit Components - Automatically Regulated A/C System







1 - A/C unit with evaporator

2 - Defroster Flap Motor -V107-
• With Defroster Flap Motor Position Sensor -G135-
• Lever color identification - blue

3 - Left Footwell Vent Temperature Sensor -G261-

4 - Central Air Flap Motor -V70-
• With Central Flap Motor Position Sensor -G112-

5 - Auxiliary Air Heater Heating Element -Z35- with Auxiliary Air Heater Control Module -J604-

6 - Heat exchanger for heater unit

7 - Left Temperature Flap Motor -V158-
• Left Temperature Flap Potentiometer/Actuator -G220-
• Lever color identification - white

8 - Air Flow Flap Motor -V71-
• With Back Pressure Flap Motor Position Sensor -G113-

9 - Recirculation Flap Motor -V113-
• With Recirculation Flap Motor Position Sensor -G143-

10 - Right Footwell Vent Temperature Sensor -G262-

11 - Intake housing with recirculating air back pressure door (fresh air door)

12 - Fresh Air Intake Duct Temperature Sensor -G89-

A/C Unit Components - Automatically Regulated A/C System
continued





13 - Fresh air blower -V2-
• With Fresh Air Blower Control Module -J126-

14 - Dust and pollen filter

15 - Evaporator Vent Temperature Sensor -G263-

16 - Right Temperature Flap Motor -V159-
• With Right Temperature Flap Potentiometer/Actuator -G221-

20 - Expansion Valve
