Windshield: Service Precautions

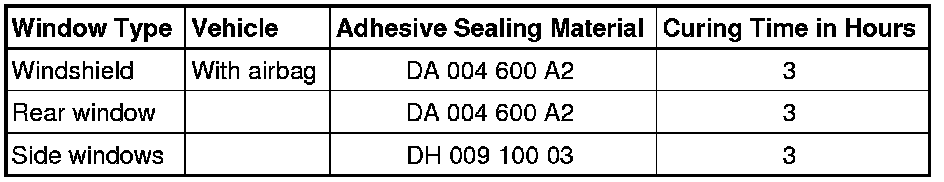

Minimum Curing Times


• For safety reasons, use only electrically non-conductive 2K-adhesive when installing windshield and rear window using the materials listed below.

• The vehicle can only be used after the minimum curing time has elapsed.






Cleaning when Contaminated by Adhesive Sealing Material

It is recommended to use adhesive remover D 002 000 10 as a cleaning solution. Follow the safety precautions when using it.


When cleaning from vehicle interior out, the window just installed must not be pressed outward.

Paint Surfaces:

- Clean the painted surface with a dry cloth. Clean off any dirt with adhesive remover D 002 000 10.

Plastic Trim:

- Allow the adhesive sealant to harden (approximately 1 hour) and then peel it off.
