Shift Interlock Control Module: Service and Repair

Selector Lever Sensor System Control Module with Tiptronic Switch

• Selector Lever Sensor System Control Module (J587) with Tiptronic Switch (F189) are combined in one component.

• Tiptronic Switch (F189) magnets are secured to cover.

Removing

- Remove selector lever handle => [ Selector Lever Handle ] Selector Lever Handle.

- Remove rear and front center console.

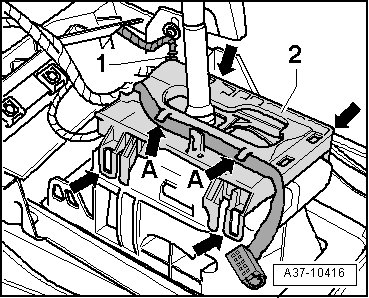

- Disconnect electrical connector - 1 -.





- Release four retaining tabs - arrows - and remove Selector Lever Sensor System Control Module (J587) with Tiptronic Switch (F189) upward.

Installing

Install in reverse order, paying attention to the following:

- Engage Selector Lever Sensor System Control Module (J587) with Tiptronic Switch (F189) with four retaining tabs - arrows -.

- Secure Selector Lever Transmission Range (TR) Position Display (Y26) electrical wiring - arrows -.

- Install rear and front center console.

- Install selector lever handle => [ Selector Lever Handle ] Selector Lever Handle.
