Seat Ventilation Control Module Overview

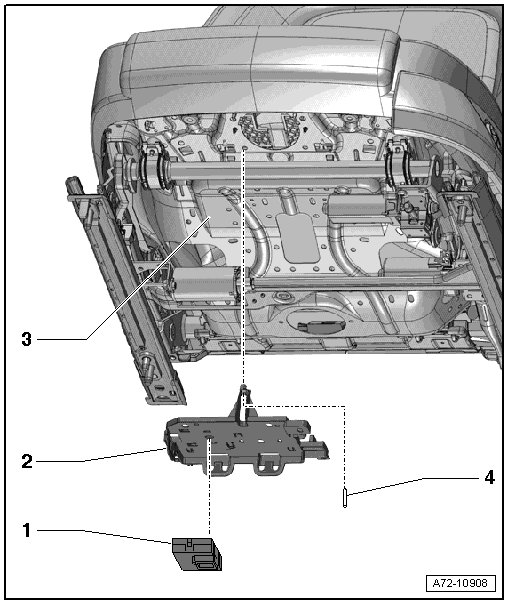

Seat Ventilation Control Module Overview






1 Seat Ventilation Control Module (Integrated In The Seat Heating)

• Driver side left front seat ventilation control module (J800).

• Front passenger side: right front seat ventilation control module (J799).

• Clipped with the bracket.

• Removing and installing, refer to => [ Front Seat Ventilation Control Module (J799)/(J800) ] Front Seat Ventilation Control Module (J799)/(J800).

2 Bracket

• Removing and installing, refer to => [ Memory Seat/Steering Column Adjustment Control Module Bracket ] Memory Seat/Steering Column Adjustment Control Module Bracket.

3 Front Seat

4 Pin

• For securing the bracket to the seat pan.
