Exhaust Gas Temperature Sensor 3

Exhaust Gas Temperature Sensor 3

Removing

- Remove the engine cover - arrows -.

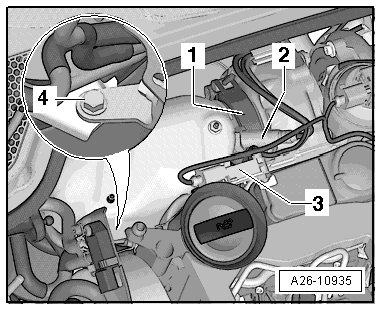

- Remove the heat shield boot and then remove exhaust pressure sensor 1 (G450) - 3 -.





- Remove the clamp - 1 -.

- Disconnect the - 5 - exhaust gas temperature sensor 3 (G495) connector and free up the wire.

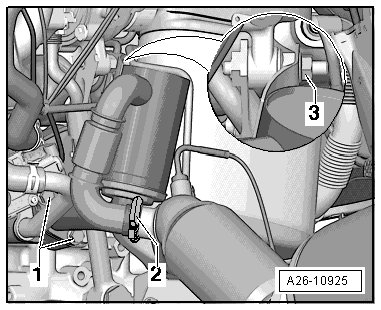

- Remove the noise insulation - 1 -.





- Remove the clamp - 2 -.

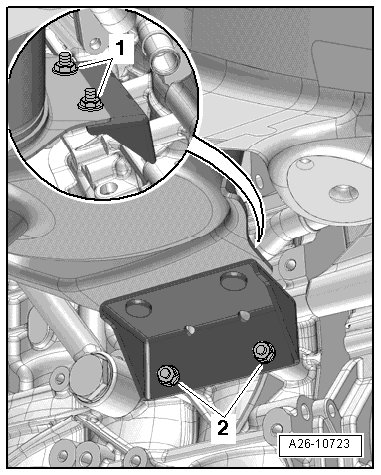

- Remove the nuts - 2 -.





• Ignore - 1 -.

- Remove the bolt - 4 - and push the particulate filter toward the rear.

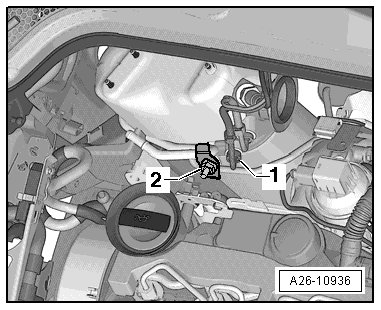

- Loosen the nut - 2 -.





- Remove exhaust gas temperature sensor 3 - 1 -.

Installing

• Tightening specifications, refer to => [ Particulate Filter and NOx Absorption Catalytic Converter Assembly Overview ] Particulate Filter and NOx Absorption Catalytic Converter Assembly Overview.

• Tightening specifications, refer to => [ Exhaust Temperature Control Assembly Overview ] Exhaust Temperature Control Assembly Overview.

Installation is in reverse order of removal, note the following:

• Coat the thread on the temperature sensor with hot bolt paste. Refer to the electronic parts catalog ETKA.

• During installation, all cable ties must be installed at the same location.

Pay attention the installed position of the exhaust gas temperature sensor 3 => [ Exhaust Gas Temperature Sensor
Installed Position ] Exhaust Temperature Control Assembly Overview.

- Install exhaust pressure sensor 1.

- Install the noise insulation.
