Model Year 2008-Up
Control Modules in Interior of Vehicle

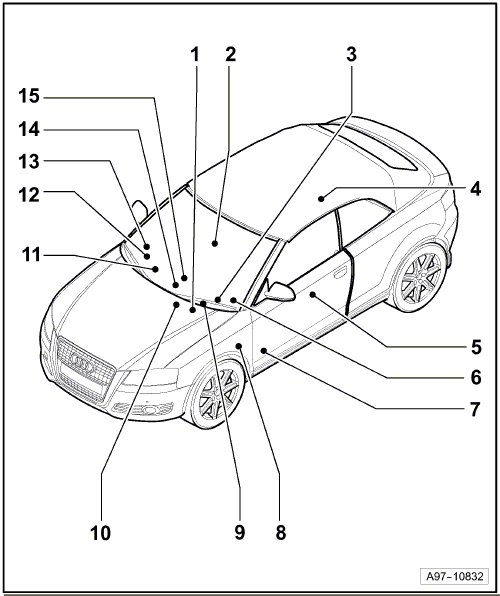

Overview of Control Modules
1 - Headlamp Range Control Module -J431-
• Component Location => [ ] Range Control Module -J431-
• Pin Arrangements => [ Pin Arrangements: ] Range Control Module -J431-
2 - Front Passenger's Heated Seat Control Module -J727-
• Component Location => [ ] Front Pass Heated Seat Control Module -J727-
• Pin Arrangements => [ Pin Arrangements: ] Front Pass Heated Seat Control Module -J727-
3 - Instrument Cluster Control Module -J285-
• Component Location => [ ] Locations
• Pin Arrangements => [ Pin Arrangements: ] Locations
4 - Fuel Pump (FP) Control Module -J538-
• Component Location => [ ] Locations
• Pin Arrangements => [ Pin Arrangements: ] Locations
5 - Driver's Heated Seat Control Module -J726-
• Component Location => [ ] Driver's Heated Seat Control Module -J726-
• Pin Arrangements => [ Pin Arrangements: ] Driver's Heated Seat Control Module -J726-
5 - Voltage Stabilizer -J532-
• Component Location => [ ] Voltage Stabilizer -J532-
• Pin Arrangements => [ Pin Arrangements: ] Voltage Stabilizer -J532-
6 - Steering Column Electronic Systems Control Module -J527-
• Component Location => [ ] Locations
• Pin Arrangements => [ Pin Arrangements: ] Locations
7 - Driver's Door Control Module -J386-
• Component Location => [ ] Driver's Door Control Module -J386-
• Pin Arrangements => [ Pin Arrangements: ] Driver's Door Control Module -J386-
8 - Vehicle Electrical System Control Module -J519-
• Component Location, from March 2008 => [ ] Vehicle Electrical System Control Module -J519-
• Component Location, from May 2009 => [ ] Vehicle Electrical System Control Module -J519-
• Pin Arrangements, from March 2008 => [ Pin Arrangements: ] Vehicle Electrical System Control Module -J519-
• Pin Arrangements, from May 2009 => [ Pin Arrangements: ] Vehicle Electrical System Control Module -J519-
9 - Heater Control Module -J65- / -J162-
• Component Location => [ / ] Heater Control Module -J65- / Heater Control Module -J162-
9 - Climatronic Control Module -J255-
• Component Location => [ ] Climatronic (Automatic Climate Control) Control Module -J255-
• Pin Arrangements => [ Pin Arrangements: ] Climatronic (Automatic Climate Control) Control Module -J255-
10 - Data Bus On Board Diagnostic Interface -J533-
• Component Location => [ ] Locations
• Pin Arrangements => [ Pin Arrangements: ] Locations
11 - CD Changer -R41-
• Component Location => [ ] Locations
12 - Fresh Air Blower Control Module -J126-
• Component Location => [ ] Fresh Air Blower Control Module -J126-
13 - Front Passenger's Door Control Module -J387-
• Component Location => [ ] Front Pass Door Control Module -J387-
• Pin Arrangements => [ Pin Arrangements: ] Front Pass Door Control Module -J387-
14 - Airbag Control Module -J234-
• Component Location => [ ] Locations
• Pin Arrangements => [ Pin Arrangements: ] Locations
15 - Radio -R- / Radio/Navigation Display Control Module -J503-
• Component Location => [ / (RNS-Low) ] Radio -R- / Radio / Navigation Display Control Module -J503- (RNS-Low)
15 - Navigation System Operating Electronics Control Module -J402-
• Component Location => [ (RNS-E) ] Nav System Operating Electronics Control Module -J402- (RNS-E)
