Rear Door Window Guide

Window Guide

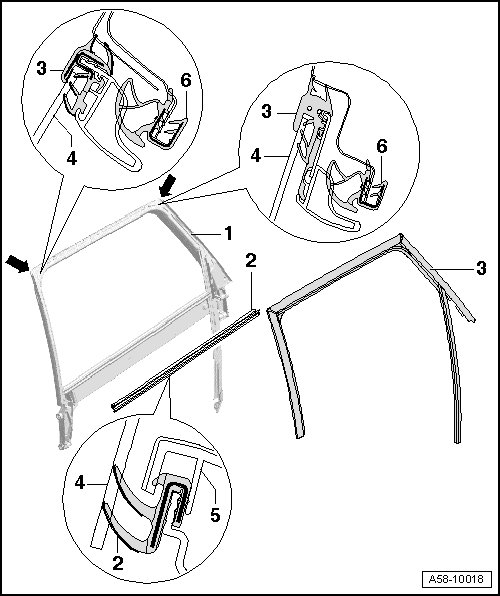

1 Window Frame

• Removed => [ Window Frame ] Rear Door Components

2 Inner Window Recess Seal

• Door trim removed.

3 Window Guide

• Seal must not be installed by knocking it on, rather seal must be pressed in.

• Use soapy water to assist assembly of seal.

• Slide onto window frame from side.

• Use soap solution to assist assembly.

• Securing piece must engage audibly into corners - arrows -, adhere further if necessary

4 Inner Door Seal

5 Door Window

6 Door Trim

• Removed
