Data Bus On Board Diagnostic Interface Overview

Data Bus On Board Diagnostic Interface Overview

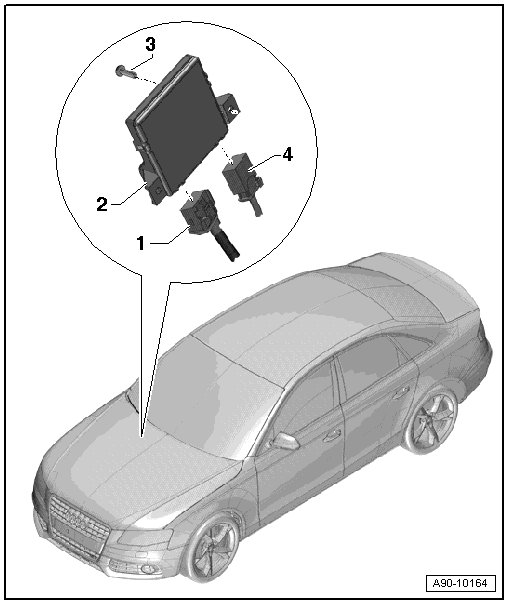

1 Electrical Connector

• For the data bus on board diagnostic interface.

2 Data Bus On Board Diagnostic Interface (J533)

• Removing and installing, refer to => [ Data Bus On Board Diagnostic Interface (J533) ] Data Bus On Board Diagnostic Interface (J533).

3 Bolt

• 3 Nm

4 Fiber Optic Cable Connector

• Attach with the protective cap for cable connector (VAS 6223/9).
