Windows: Service and Repair

Window Guide

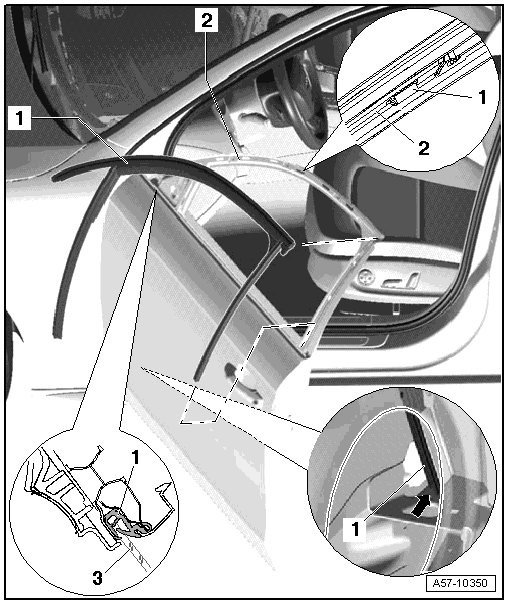

1 Window guide

• Remove the door trim panel and the window frame trim.

• The exterior mirror is moved. Refer to => [ Exterior Rearview Mirror ] Exterior Rearview Mirror.

Removed B-Pillar trim on the front door, refer to => [ Front B-Pillar Trim ] Front B-Pillar Trim

• Door window removed.

- Beginning at the upper window guide, as well as on the A-pillar and B-pillar, remove it from the door.

- Remove the window guide from the door.

• To make it easier to install, spray the window guide with soap solution.

• Push the window guide into the guide shafts as illustrated.

• Press the window guide with the latching tabs into the door at the top.

2 Door

3 Door window
