Control Module: Description and Operation

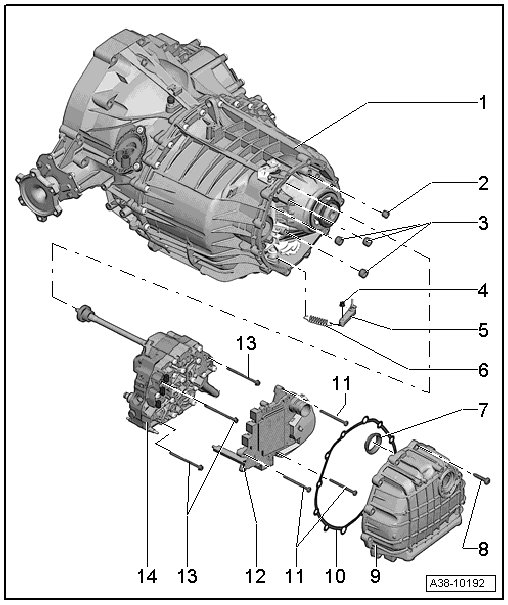

Cover, Transmission Control Module (J217), Hydraulic Control Module, Overview

There is a risk of damaging the transmission.

• Do not run engine and do not tow vehicle if end cover is removed or if not filled with ATF.

• Read the general repair instructions, refer to => [ Repair Information ] Repair Information.

• Guidelines for clean working conditions when working on automatic transmission, refer to => [ Clean Working Conditions ] Clean Working Conditions.






1 Transmission

2 Small Axial Sealing Element

• Replace

3 Large Axial Sealing Element

• Replace

4 Roller

5 Lever for Selector Lever Catch

6 Spring

7 Seal

• For connector to the transmission control module (J217)

8 Bolt

9 End Cover

• Removing and installing, refer to => [ End Cover ] End Cover

10 Gasket

• Replace

11 Bolt

12 Transmission Control Module (J217)

13 Bolt

14 Hydraulic Control Module
