Rear Multi-Contour Seat

Driver Side Rear Seat Adjustment Control Module J876/Passenger Side Rear Seat Adjustment Control Module J877

Includes Left rear seat adjustment control module (J876) / right rear seat adjustment control module (J877)

Removing

• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components, Safety Precautions and Testing Procedures ] Description and Operation.

• Before handling pyrotechnical components (for example, disconnecting the connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

- Remove the multi-contour seat. Refer to => [ Multi-contour Seat ] Multi-Contour Seat.

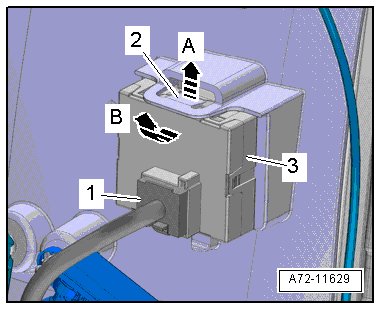

- Disconnect the connector - 1 - from the control module.






- Carefully unclip the control module from the tabs with a screwdriver - 2 - - arrow A -.

- Remove the control module - 3 - towards the rear - arrow B -, disengage the hooks from the mount, and remove the control module upwards.

Installation

• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components, Safety Precautions and Testing Procedures ] Description and Operation.

• Before handling pyrotechnical components (for example, connecting electrical connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

• Observe all measures when installing the multi-contour seat. Refer to => [ Multi-contour Seat ] Multi-Contour Seat.

Install in reverse order of removal. Note the following:

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Multi-contour Seat Electrical Components Overview ] Multi-Contour Seat Electrical Components Overview.
