Multi-Contour Seat Compressor Assembly Overview

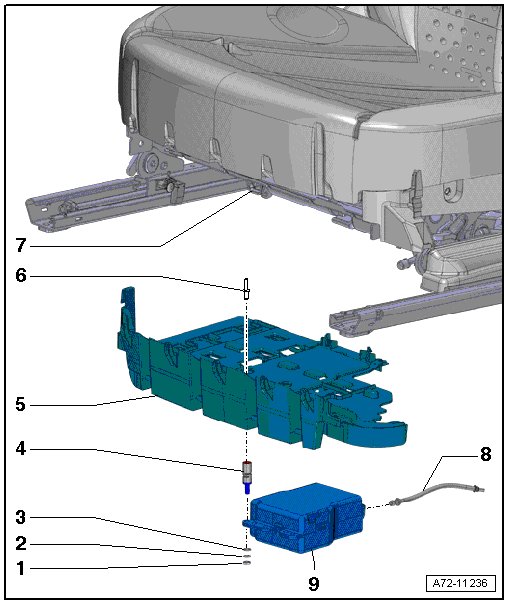

Multi-contour Seat Compressor Assembly Overview






1 Nut

• Quantity: 3

• Brace rubber-metal mount while tightening

• 3.5 Nm

2 Spring washer

• Quantity: 3

3 Washer

• Quantity: 3

4 Rubber metal mount

• Quantity: 3

• Removing and Installing, refer to => [ Multi-contour Seat Compressor Bonded Rubber Bushing ] Multi-Contour Seat Compressor Bonded Rubber Bushing

• Do not install under tension or twisted

5 Bracket

• For front trim, compressor and multi-contour seat control module

• Removing and Installing, refer to => [ Front Trim Bracket, Compressor and Multi-contour Seat Control Module ] Front Trim Bracket, Compressor and Multi-Contour Seat Control Module

6 Rivet

• Quantity: 3

7 Front seat

8 Pneumatic line

9 Driver seat multi-contour seat compressor (V439)

• Front passenger side: front passenger multi-contour seat compressor (V440)

• Removing and Installing, refer to => [ Multi-contour Seat Compressors V439/V440 ] Multi-Contour Seat Compressors V439/V440
