MMI Navigation Overview
MMI Navigation Overview
MMI Navigation (7T2) Overview
1 Roof Antenna (R216)
2 Front Information Display Control Head (J685) In Center Of The Instrument Panel
3 Multimedia System Control Head (E380) In The Front Of The Center Console
4 Information Electronics Control Module 1 (J794) Inside The Instrument Panel
5 External Audio Source Connection (R199) (Interface) Inside The Front Of The Center Console
6 Data Bus On Board Diagnostic Interface (J533) Under The Rear Seat Bench
7 Digital Sound System Control Module (J525) Is Behind The Luggage Compartment Trim Panel On The Left Side
8 MOST Bus
9 CD Changer (R41) Inside The Glove Compartment
10 Microphone Unit In Front Roof Module (R164) ( Left Front Microphone (R140) ) Inside The Front Interior Lamp (W1)

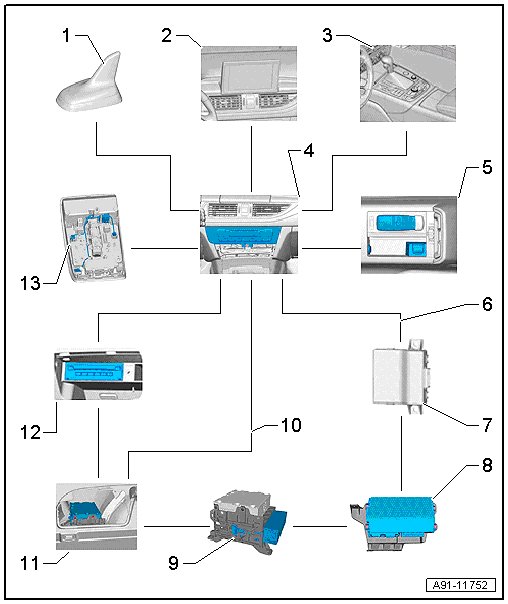

MMI Navigation Plus (7T6) Overview
1 Roof Antenna (R216)
2 Front Information Display Control Head (J685) In Center Of The Instrument Panel
3 Multimedia System Control Head (E380) In The Front Of The Center Console
4 Information Electronics Control Module 1 (J794) Inside The Instrument Panel
5 Telephone Baseplate (R126) / External Audio Source Connection (R199) (Interface) Inside The Storage Compartment In The Center Console
6 MOST Bus
7 Data Bus On Board Diagnostic Interface (J533) Under The Rear Seat Bench
8 Digital Sound System Control Module (J525) Is Behind The Luggage Compartment Trim Panel On The Left Side
9 Radio (R) Behind The Luggage Compartment Trim Panel On The Left Side
10 FBAS Wire
11 TV Tuner (R78)
• Not available in the USA or Canada.
12 DVD Changer (R161)
• Not available in the USA or Canada.
13 Microphone Unit In Front Roof Module (R164) ( Left Front Microphone (R140) ) Inside The Front Interior Lamp (W1)
• Overview, refer to => [ Microphone Unit In Front Roof Module (R164) ] Microphone Unit In Front Roof Module (R164).
