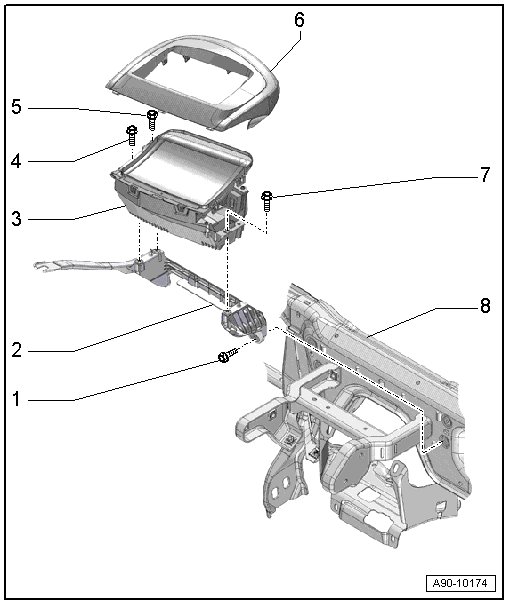

Windshield Projection Control Module Overview

Windshield Projection Control Module Overview






1 Screw

• Quantity: 4

2 Bracket

• For windshield projection control module.

3 Windshield Projection Head Up Display Control Module (J898)

• Removing and installing, refer to => [ Windshield Projection Head Up Display Control Module (J898) ] Service and Repair.

• Calibrating, refer to => [ Windshield Projection Head Up Display Control Module (J898), Calibrating ] Testing and Inspection.

4 Screw

• 5.5 Nm

5 Screw

• 5.5 Nm

6 Upper Cover

7 Screw

• 5.5 Nm

8 Central Tube
