Memory Seat/Steering Column Adjustment Control Module Assembly Overview

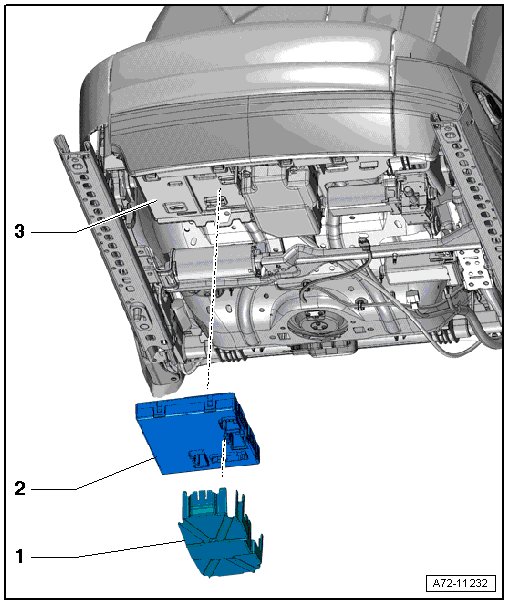

Memory Seat/Steering Column Adjustment Control Module Assembly Overview






1 Cover

2 Memory seat/steering column adjustment control head (J136)

• Vehicles with left front seat ventilation control module (J800) (seat heating function integrated)

• Front passenger side front passenger memory seat control module (J521)

• Front passenger side vehicle version with Right front seat ventilation control module (J799) (seat heating function integrated)

• Removing and Installing, refer to => [ Memory Seat/Steering Column Adjustment Control Module J136/J521 ] Memory Seat/Steering Column Adjustment Control Module J136/J521

• Must engage audibly in the bracket

3 Bracket

• For front trim, compressor and multicontour seat control module

• Removing and Installing, refer to => [ Front Trim Bracket, Compressor and Multicontour Seat Control Module ] Front Trim Bracket, Compressor and Multicontour Seat Control Module
