Seat Adjustment Control Head/Switch Module Operation Assembly Overview

Seat Adjustment Control Head/Switch Module Operation Assembly Overview

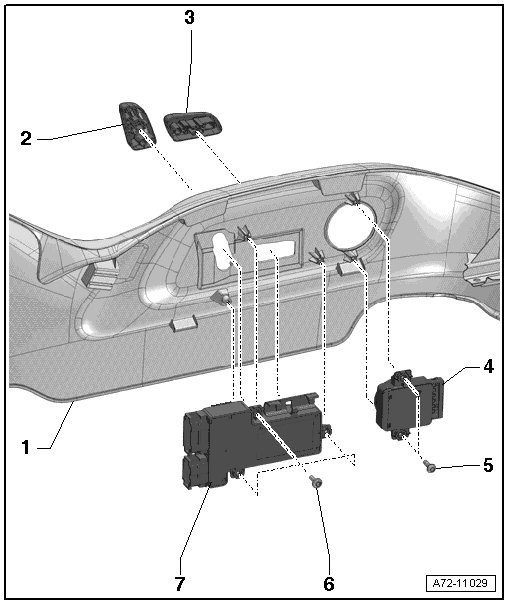

Vehicles without memory function






1 Sill-side trim

• Removing and Installing, refer to => [ Sill-Side Trim with Front Trim ] Sill-Side Trim with Front Trim

2 Actuator

• For backrest adjustment

• Clipped on

• Removing and Installing, refer to => [ Seat Adjustment Control Head ] Seat Adjustment Control Head

3 Actuator

• For seat adjustment

• Clipped on

• Removing and Installing, refer to => [ Seat Adjustment Control Head ] Seat Adjustment Control Head

4 Driver Seat Lumbar Support Adjustment Switch (E176)

• Front passenger side front passenger seat lumbar support adjustment switch (E177)

• Removing and Installing, refer to => [ Lumbar Support Adjustment Switch E176/E177 ] Lumbar Support Adjustment Switch E176/E177

5 Bolt

• Quantity: 2

• 0.8 Nm

6 Bolt

• Quantity: 3

• 0.8 Nm

7 Driver Seat Adjustment Control Head (E470)

• with:

• Driver backrest adjustment switch (E96)

• Driver seat angle adjustment switch (E222)

• Driver seat forward/back adjustment switch (E363)

• Driver height adjustment switch (E364)

• Front passenger side front passenger seat adjustment control head (E471) with:

• Front passenger seat forward/back adjustment switch (E64)

• Front passenger backrest adjustment switch (E98)

• Front passenger seat angle adjustment motor (E334)

• Front passenger seat height adjustment switch (E365)

• Removing and Installing, refer to => [ Seat Adjustment Control Head E470/E471/Front Seat Switch Module E663/E664 ] Seat Adjustment Control Head E470/E471/Front Seat Switch Module E663/E664

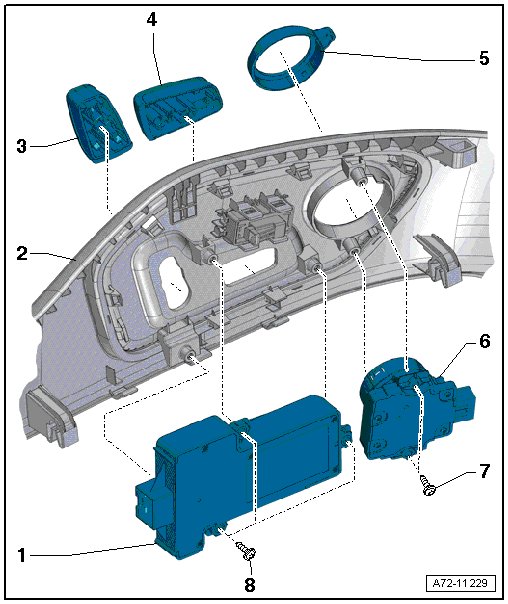

Vehicles with memory function






1 Driver seat switch module (E663)

• with:

• Driver backrest adjustment switch (E96)

• Driver headrest adjustment switch (E155)

• Driver seat angle adjustment switch (E222)

• Driver seat forward/back adjustment switch (E363)

• Driver height adjustment switch (E364)

• Front passenger side front passenger seat switch module (E664) with:

• Front passenger seat forward/back adjustment switch (E64)

• Front passenger backrest adjustment switch (E98)

• Front passenger headrest adjustment switch (E170)

• Front passenger seat angle adjustment motor (E334)

• Front passenger seat height adjustment switch (E365)

• Removing and Installing, refer to => [ Seat Adjustment Control Head E470/E471/Front Seat Switch Module E663/E664 ] Seat Adjustment Control Head E470/E471/Front Seat Switch Module E663/E664

2 Sill-side trim

• Removing and Installing, refer to => [ Sill-Side Trim with Front Trim ] Sill-Side Trim with Front Trim

3 Actuator

• For the backrest and head restraint adjusters

• Clipped on

• Removing and Installing, refer to => [ Seat Adjustment Control Head ] Seat Adjustment Control Head

• Push on it until it clicks into place

4 Actuator

• For seat adjustment

• Clipped on

• Removing and Installing, refer to => [ Seat Adjustment Control Head ] Seat Adjustment Control Head

• Push on it until it clicks into place

5 Rocker

• For driver seat switch module 2 (E667) / front passenger seat switch module 2 (E668)

• Clipped on

• Removing and Installing, refer to => [ Front Seat Switch Module 2 E667/E668 ] Front Seat Switch Module 2 E667/E668

6 Driver seat switch module 2 (E667)

• Front passenger side front passenger seat switch module 2 (E668)

• Removing and Installing, refer to => [ Front Seat Switch Module 2 E667/E668 ] Front Seat Switch Module 2 E667/E668

7 Bolt

• Quantity: 2

• 0.8 Nm

8 Bolt

• Quantity: 3

• 0.8 Nm
