Rear Seat Adjustment Control Module Assembly Overview

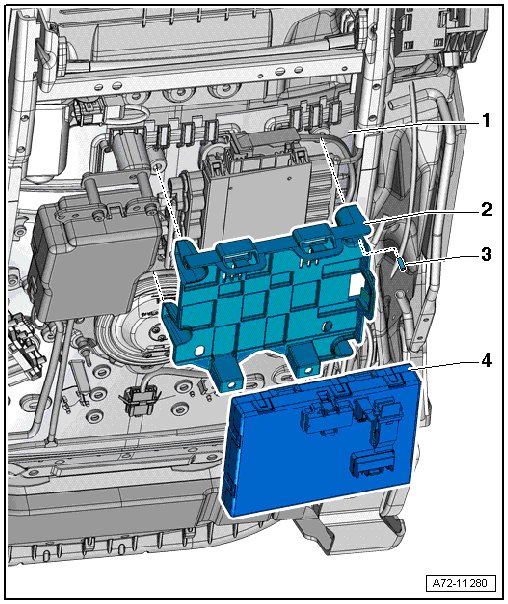

Rear Seat Adjustment Control Module Assembly Overview






1 Module carrier with air cushions for lumbar support

2 Bracket

• For the control module

• Removing and Installing, refer to => [ Rear Seat Adjustment Control Module ] Rear Seat Adjustment Control Module

3 Pin

• Quantity: 4

• for securing the bracket to the module carrier

4 Left rear seat adjustment control module (J876)

• Front passenger side right rear seat adjustment control module (J877)

• Vehicles with integrated seat ventilation and seat heating functions

• Removing and Installing, refer to => [ Rear Seat Adjustment Control Module J876/J877 ] Rear Seat Adjustment Control Module J876/J877

• Must engage audibly in the bracket
