Rear Seat Adjustment Control Module J876/J877

Rear Seat Adjustment Control Module J876/J877

Left rear seat adjustment control module (J876) / right rear seat adjustment control module (J877)

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)

Removing






• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components, Safety Precautions and Testing Procedures ] Description and Operation.

• Before handling pyrotechnic components (for example, disconnecting the electrical connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

- Seat frame Remove the rear seat backrest. Refer to => [ Lower Seat Frame/Rear Seat Backrest ] Lower Seat Frame/Rear Seat Backrest.

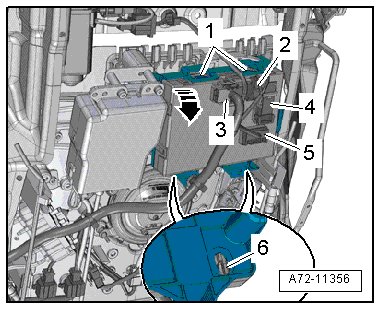

- Disconnect harness connectors - 2 to 5 - at the control module.

• The number of connectors may vary depending on equipment. The description shows the version with the most equipment possible.

- Carefully unclip control module using the trim removal wedge (3409) at the catches - 1 -.

- Swing out control module - direction of arrow - detach hooks - 6 - at the retainer and remove control module.

Installing

• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components, Safety Precautions and Testing Procedures ] Description and Operation.

• Before handling pyrotechnic components (for example, connecting the electrical connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

• Observe all measures when installing the rear seat => [ Lower Seat Frame/Rear Seat Backrest ] Lower Seat Frame/Rear Seat Backrest.

Install in reverse order of removal. Note the following:

Installation note: For example tightening specifications, replace components. Refer to => [ Rear Seat Adjustment Control Module Assembly Overview ] Rear Seat Adjustment Control Module Assembly Overview.
