Control Assembly: Service and Repair

Air Ionization System Control Module (J897)

• The air ionization system is only provided in vehicles with a rear Climatronic A/C display control head (E265) and only planned for market specific vehicles. Refer to Audi sales program.

• The air ionization system button (E677) and the air ionization system control module are always installed in the B-pillar behind the front passenger seat (in vehicles with steering on the left side in the right B-pillar).

• Odors in the air flowing by are neutralized at ionizer - D -.






• In the case of vehicles without an air ionization system control module, seal the installation opening in air duct - F - in an air-tight manner, for example with adhesive tape.

Removing

- Move the right front seat (passenger side seat) as far forward as possible.

- Switch off the ignition.

- Remove the upper trim of the right B-pillar.

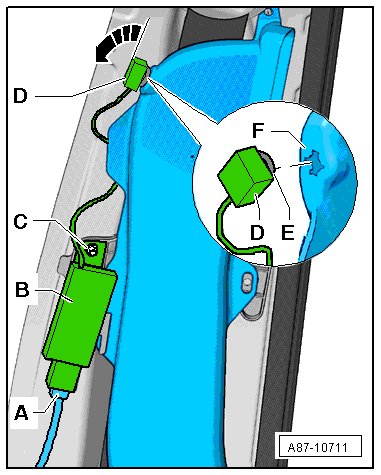

- Disconnect the electrical connection - A -.

- Remove the screw - C -.

- Turn ionizer - D - 90° - arrow - and remove it from the mount of air duct - F -.

Installing

Installation is carried out in the reverse order while observing the following.

- Check seal - E - for damage and proper seating.

- Reinstall the removed parts in the opposite order.

- Check the event memory of the Climatronic control module (J255) , and the rear A/C display control head (E265) and erase any displayed malfunctions using the Vehicle Diagnostic Tester in the "Guided Fault Finding" function.
