Air Injection: Service and Repair

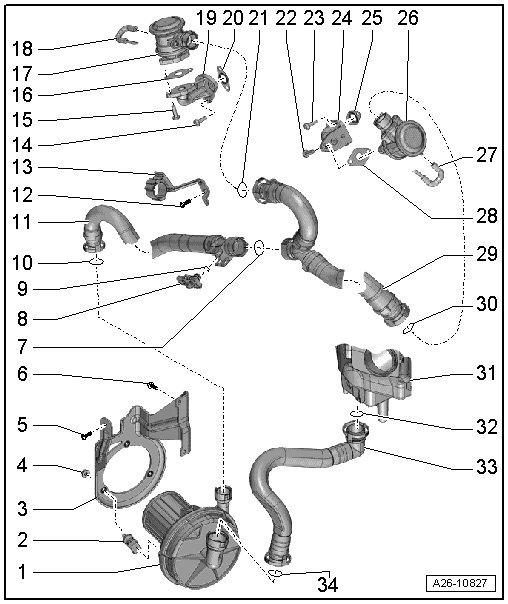

Secondary Air Injection System Overview
1 Secondary Air Injection (AIR) Pump Motor (V101)
• Component location: at front right in engine compartment below the longmember
• Removing and installing, refer to => [ Secondary Air Injection Pump Motor ] Service and Repair
• Checking in Guided Fault Finding using the vehicle diagnosis tester
2 Bonded Rubber Bushing
3 Bracket
• For secondary air injection (AIR) pump motor (V101)
4 Nut
• 9 Nm
5 Bolt
• 9 Nm
6 Bolt
• 9 Nm
7 O-ring
• Replace
8 Secondary Air Injection Sensor 1 (G609)
• Removing and installing, refer to => [ Fuel Level Sensor 1 ] Fuel Level Sensor 1
9 O-ring
• Replace
10 O-ring
• Replace
11 Hose
• For secondary air
• From secondary air injection (AIR) pump motor to secondary air injection combi-valves
12 Bolt
• 9 Nm
13 Bracket
• For the secondary air injection hose
14 Bolt
• 9 Nm
15 Bolt
• 9 Nm
16 Gasket
• Replace
17 Right Secondary Air Injection (AIR) Combination Valve
• Component location: on the front of the cylinder head
• Checking, refer to => [ Secondary Air Injection Combination Valves, Checking for Function and Leaks ] Secondary Air Injection Combination Valves, Checking for Function and Leaks
• Removing and installing, refer to => [ Secondary Air Injection Combination Valve ] Service and Repair
18 Vacuum Hose
19 Connection Flange
20 Gasket
• Replace
21 O-ring
• Replace
22 Bolt
• 9 Nm
23 Bolt
• 9 Nm
24 Connection flange
25 Gasket
• Replace
26 Left Secondary Air Injection (AIR) Combination Valve
• Component location: on the front of the cylinder head
• Checking => [ Secondary Air Injection Combination Valves, Checking for Function and Leaks ] Secondary Air Injection Combination Valves, Checking for Function and Leaks
• Removing and installing, refer to => [ Secondary Air Injection Combination Valve ] Service and Repair
27 Vacuum Hose
28 Gasket
• Replace
29 Secondary Air Hose
• To secondary air injection (AIR) combi-valves
30 O-ring
• Replace
31 Air Filter Housing
32 O-ring
• Replace
33 Secondary Air Hose
• From air filter housing
34 O-ring
• Replace
