Oil Pan, Engine

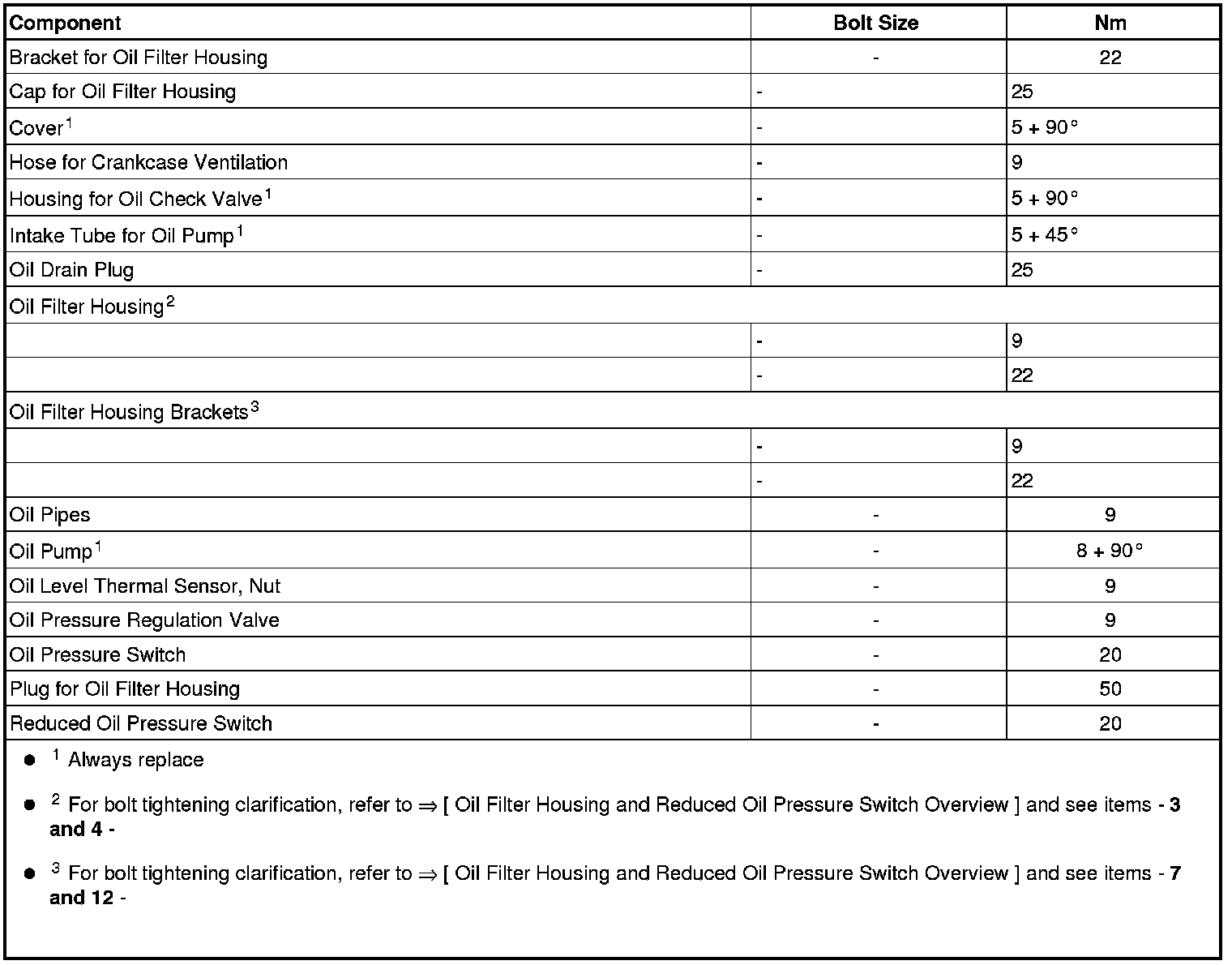

Fastener Tightening Specifications






Lower Section of Oil Pan, Tightening Specifications and Sequence

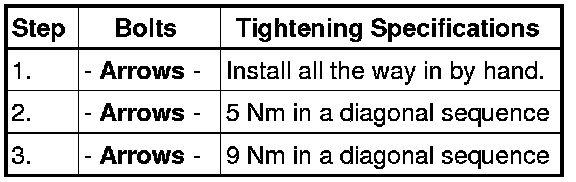

- Tighten bolts in 3 stages as follows:

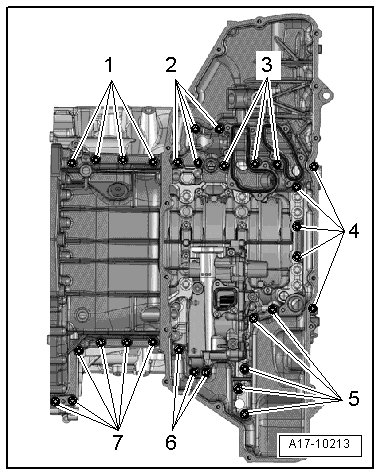

Upper Section of Oil Pan, Tightening Specifications and Sequence






• Replace bolts which have been tightened to an additional torque.

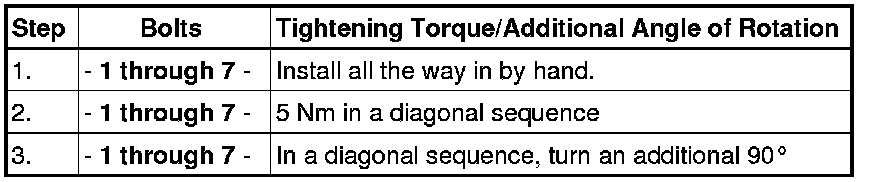

- Tighten bolts in 3 stages as follows:
