System Specifications

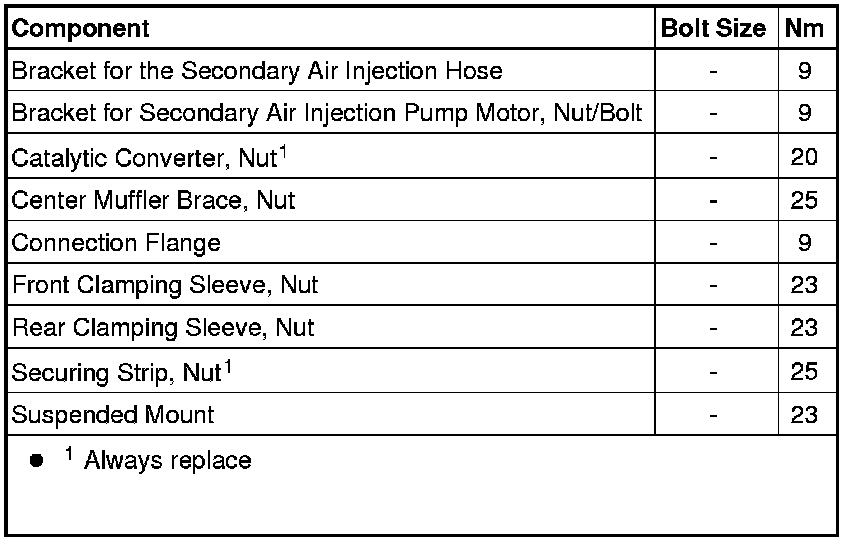

Fastener Tightening Specifications

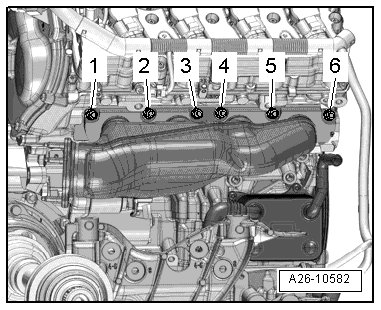

Left Exhaust Manifold, Tightening Specifications and Sequence






• Replace the exhaust manifold nuts.

• Coat the thread on the nut with hot bolt paste; for the correct hot bolt paste, refer to the electronic parts catalog ETKA.

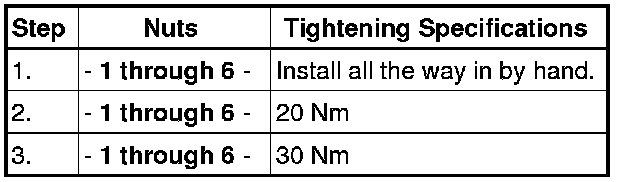

- Tighten the nuts in 3 steps according to the tightening sequence:

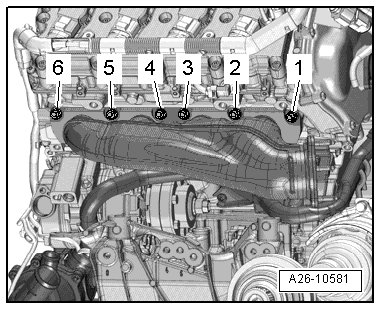

Right Exhaust Manifold, Tightening Specifications and Sequence






• Replace the exhaust manifold nuts.

• Coat the thread on the nut with hot bolt paste; for the correct hot bolt paste, refer to the electronic parts catalog ETKA.

- Tighten the nuts in 3 steps according to the tightening sequence:
