Starting System: Service and Repair

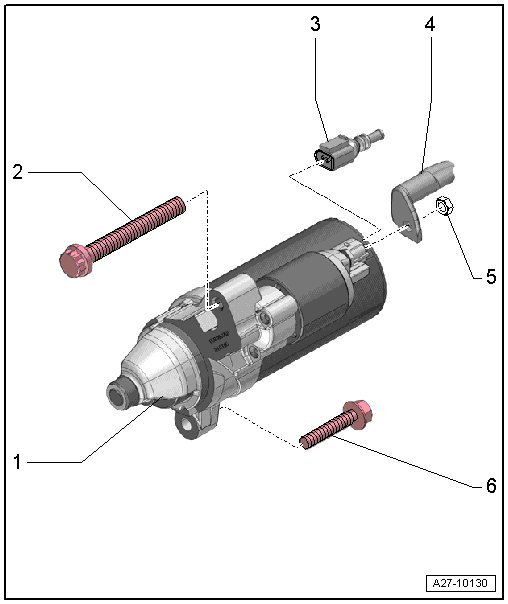

Starter Overview

Observe notes on contact corrosion. Refer to=> [ Contact Corrosion ] Contact Corrosion.






1 Starter

• Removing and installing:

• 4.0L TFSI engine, refer to => [ Starter, ] Starter.

• 3.0L TFSI, 4.2L FSI engine, refer to=> [ Starter ] Starter.

• 6.3L FSI engine, refer to=> [ Starter ] Starter.

• 3.0L TDI engine, refer to => [ Starter ] Starter.

2 Screw

3 Electrical Connector

4 Terminal B+

5 Nut

• 18 Nm

6 Screw
