Front Subframe Mount: Service and Repair

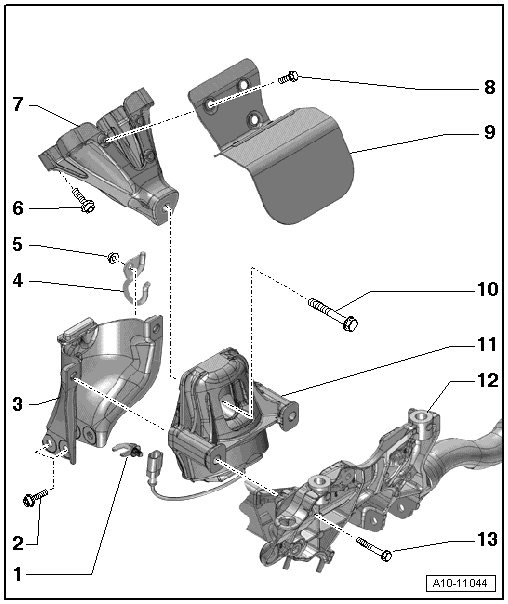

Subframe Mount Overview






1 Not Installed

2 Bolt

• 20 Nm

3 Retaining Plate

• For the engine mount

• If the engine mount is faulty, replace the retaining plate

• Check the retaining plate on the opposite side; replace if necessary

4 Bracket

• For the hydraulic line

5 Nut

• 9 Nm

6 Bolt

• 40 Nm

7 Engine Support

8 Bolt

• 10 Nm

9 Heat Shield

10 Bolt

• Replace

• 90 Nm plus an additional 90° turn

11 Engine Mount

• With left electrohydraulic engine mount solenoid valve (N144) (only left)

• Removing and installing, refer to => [ Engine Mount ] Service and Repair

• Replace in pairs only

12 Subframe

13 Bolt

• 55 Nm
