Luggage Compartment Relay, Fuse Carrier and Control Modules Overview

Luggage Compartment Relay, Fuse Carrier and Control Modules Overview

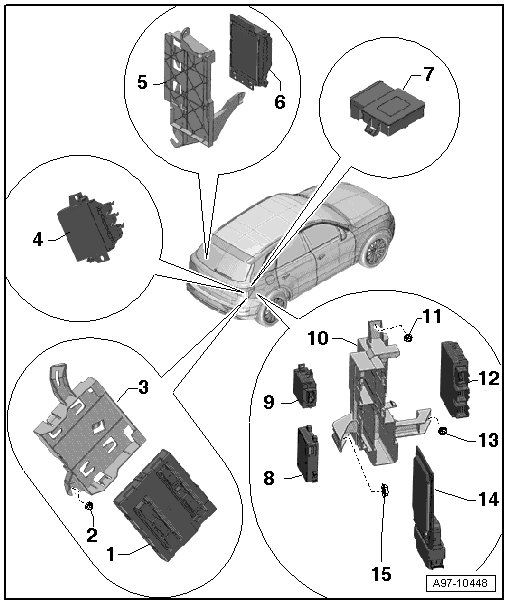

1 Comfort System Central Control Module (J393)

• Removing and installing, refer to => [ Comfort System Central Control Module (J393) ] Comfort System Central Control Module (J393)

2 Nut

• 3 Nm

3 Retaining Frame

• For the comfort system central control module (J393)

4 Parking Aid Control Module (J446)

• Overview, refer to => [ Parking Aid Overview ] Parking Aid Overview

5 Retaining Frame

• For the control modules

6 Special Purpose Vehicle Control Module (J608)

• In the luggage compartment on the left side

• Removing and installing, refer to => [ Special Purpose Vehicle Control Module (J608) ] Special Purpose Vehicle Control Module (J608)

7 Electromechanical Parking Brake Control Module (J540)

8 Cellular Telephone Amplifier (R86)

9 Auxiliary Heater Radio Receiver (R64)

10 Retaining Frame

• For the control modules

11 Nut

• 3 Nm

12 Towing Recognition Control Module (J345)

• Removing and installing, refer to => [ Towing Recognition Control Module (J345) ] Service and Repair

13 Nut

• 3 Nm

14 Electronic Damping Control Module (J250)

15 Nut

• 3 Nm
