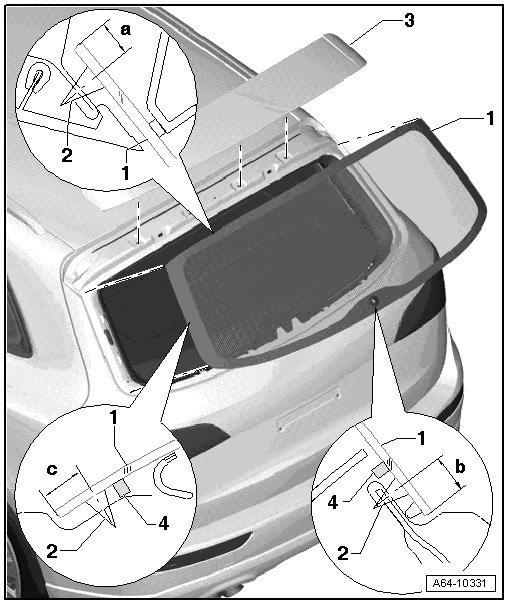

Rear Lid Window Assembly Overview

Rear Lid Window Assembly Overview






1 Rear Window

2 Adhesive Sealing Material

• Note varying spacing dimensions to window edge.

• Dimension - a - = 11 mm.

• Dimension - b - = 12.5 mm.

• Dimension - c - = 15.5 mm.

3 Roof Spoiler

4 Adhesive Stop Profile

• Must be adhered before window adhesive, near rear window heater distributing wire.

• Place inner edge of adhesive stop profile to outer edge of distributing wire for rear window heater and press on.

• Window adhesive must not come into contact with rear window defroster distributing wire.
